STL9NK30Z N-CHANNEL Power MOSFET

STL9NK30Z Description

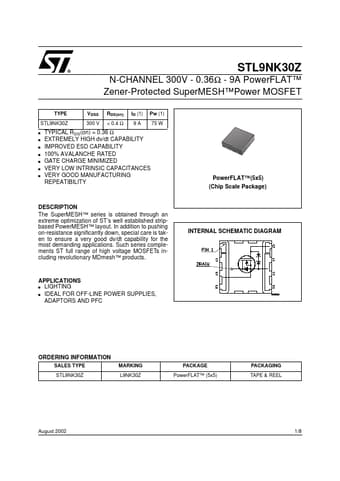

STL9NK30Z N-CHANNEL 300V - 0.36Ω - 9A PowerFLAT™ Zener-Protected SuperMESH™Power MOSFET TYPE STL9NK30Z s s s s s s s VDSS 300 V RDS(on) < 0.4 Ω ID .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

STL9NK30Z Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

STL9NK30Z Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. INTERNAL SCHEMATIC DIAGRAM APPLICATIONS LIGHTING s IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC s ORDERING INFORMATION SALES TYPE STL9NK30Z MARKING L9NK30Z PACKAGE PowerFLAT™ (5x5) PACK
