STHDM1001A - 2-to-1 High Definition Multimedia Interface (HDMI) Switch

Description

The STHDMI001A is a differential Single Pole Double Throw (SPDT) 2-to-1, low RON, bidirectional HDMI switch.

It is designed to support HDMI/DVI television systems that produce superior high-definition image quality.

Features

  • Compatible with HDMI v1.1 and DVI v1.0 digital interfaces Data rate per channel for UXGA: 1.65Gbps 165MHz speed operation supports all video formats up to 1080p and SXGA (1280x1024 at 75 Hz) Low RON: 5.5 Ω(typ) VCC operating range: 3.0V to 3.6V Low current consumption: 20µA ESD Human Body Model HMB Voltage:.
  • 4KV for HDMI connector inputs.
  • 2KV for all other I/Os Channel ON Capacitance: 6pF (typ) Switching speed: 9ns Near-Zero Propagation Delay: 250ps Low crosstalk: -32dB.

📥 Download Datasheet

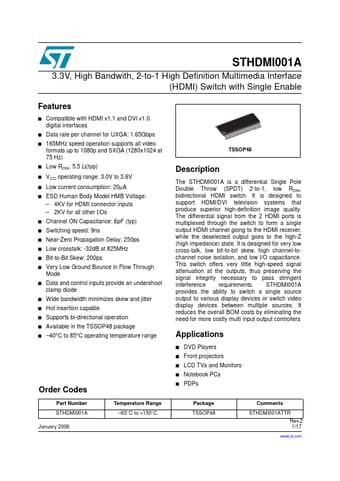

Datasheet preview – STHDM1001A

Datasheet Details

Part number STHDM1001A
Manufacturer STMicroelectronics
File Size 540.63 KB
Description 2-to-1 High Definition Multimedia Interface (HDMI) Switch
Datasheet download datasheet STHDM1001A Datasheet
Additional preview pages of the STHDM1001A datasheet.

📁 Similar Datasheet

  • STHDMI001A - 2-to-1 high definition multimedia interface (HDMI) switch (STMicroelectronics)
  • STHDMI002A - 2 to 1 HDMI switch (STMicroelectronics)
  • STH1061 - NPN Plastic Power Transistor (SEMTECH ELECTRONICS)
  • STH10N80K5-2AG - Automotive-grade N-channel Power MOSFET (STMicroelectronics)
  • STH10NK60ZFI - N-CHANNEL Power MOSFET (STMicroelectronics)
  • STH110N10F7-2 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STH110N10F7-2 - N-Channel MOSFET (INCHANGE)
  • STH110N10F7-6 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STH110N7F6-2 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STH12N120K5-2 - N-channel 1200V 12A Power MOSFET (STMicroelectronics)
Other Datasheets by ST Microelectronics
  • STHDM1002A - 2-to-1 High Definition Multimedia Interface (HDMI) Switch
  • STHDLS101 - Level Translators
  • STH10NA50 - N-CHANNEL Power MOS MOSFET
  • STH10NA50FI - N-CHANNEL Power MOS MOSFET
  • STH10NC60 - N-CHANNEL Power MOS MOSFET
  • STH10NC60FI - N-CHANNEL Power MOS MOSFET
  • STH12N60 - N-Channel Enhancement Mode Fast Power MOS Transistor
  • STH12N60FI - N-Channel Enhancement Mode Fast Power MOS Transistor

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com STHDMI001A 3.3V, High Bandwith, 2-to-1 High Definition Multimedia Interface (HDMI) Switch with Single Enable Features ■ Compatible with HDMI v1.1 and DVI v1.0 digital interfaces Data rate per channel for UXGA: 1.65Gbps 165MHz speed operation supports all video formats up to 1080p and SXGA (1280x1024 at 75 Hz) Low RON: 5.5 Ω(typ) VCC operating range: 3.0V to 3.
