STE70NM50, N-channel Power MOSFET

N-CHANNEL 500V - 0.045Ω - 70A ISOTOP Zener-Protected MDmesh™Power MOSFET TYPE STE70NM50 n n n n n n n STE70NM50 VDSS 500V RDS(on) < 0.05Ω ID 70 A .
The MDmesh™ is a new revolutionary MOSFET technology that associates the Multiple Drain process with the Company’s PowerMESH™ horizontal layout.

STE70NM50_STMicroelectronics.pdf

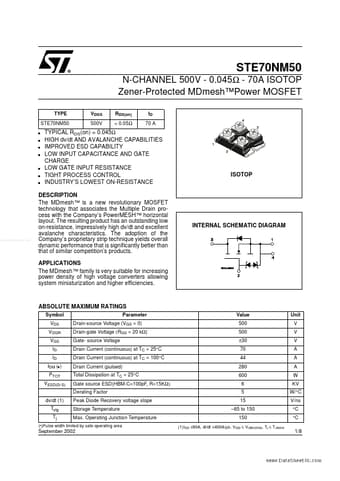

STE70NM50 Datasheet Preview — Preview of STE70NM50 PDF

Datasheet Details

Part number:

STE70NM50

Manufacturer:

STMicroelectronics ↗

File Size:

228.52 KB

Description:

N-channel Power MOSFET

Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the 25V Zener v

Applications

* The MDmesh™ family is very suitable for increasing power density of high voltage converters allowing system miniaturization and higher efficiencies. INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (l) PTOT VESD(G-S) dv/dt (1) Tstg Tj Parameter Drain-source Voltage
