STE38NB50F - N - CHANNEL PowerMESH MOSFET

STE38NB50F Description

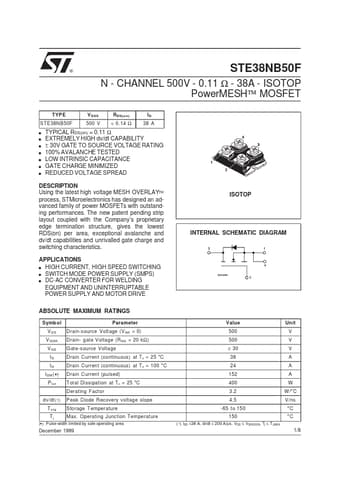

® STE38NB50F N - CHANNEL 500V - 0.11 Ω - 38A - ISOTOP PowerMESH™ MOSFET TYPE STE38NB50F s s s s s s s V DSS 500 V R DS(on) < 0.14 Ω ID 38 A TYPI.
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

STE38NB50F Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s DC-AC CONVERTER FOR WELDING EQUIPMENT AND UNINTERRUPTABLE POWER SUPPLY AND MOTOR DRIVE ABSOLUTE MAXIMUM RATINGS Symb ol V DS V DGR V GS ID ID I DM (
* ) P tot dv/dt (1) T s tg Tj Parameter Drain-source Voltage (V GS = 0
