STD5NK40Z - N-CHANNEL Power MOSFET

Description

optimization of the well-established PowerMESH™.

Features

  • Order codes VDS RDS(on) max. STD5NK40Z-1 STD5NK40ZT4 400 V 1.80 Ω.
  • 100% avalanche tested.
  • Gate charge minimized.
  • Very low intrinsic capacitance.
  • Zener-protected PTOT 45 W Package IPAK DPAK.

📥 Download Datasheet

Datasheet preview – STD5NK40Z

Datasheet Details

Part number STD5NK40Z
Manufacturer STMicroelectronics
File Size 575.79 KB
Description N-CHANNEL Power MOSFET
Datasheet download datasheet STD5NK40Z Datasheet
Additional preview pages of the STD5NK40Z datasheet.

📁 Similar Datasheet

  • STD5NK40Z-1 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STD5NK40ZT4 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STD5NK50ZT4 - N-channel MOSFET (STMicroelectronics)
  • STD5NK52ZD - N-Channel Power MOSFET (STMicroelectronics)
  • STD5NK52ZD-1 - N-Channel Power MOSFET (STMicroelectronics)
  • STD5NK60ZT4 - N-CHANNEL Power MOSFET (STMicroelectronics)
  • STD5N20L - N-CHANNEL 200V - 0.65 - 5A DPAK STripFET MOSFET (STMicroelectronics)
  • STD5N52K3 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STD5N60DM2 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STD5N60M2 - N-channel Power MOSFET (STMicroelectronics)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

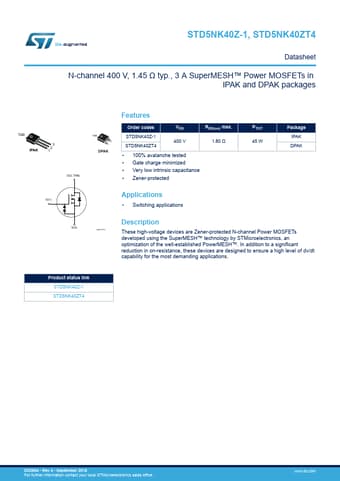

STD5NK40Z-1, STD5NK40ZT4 Datasheet N-channel 400 V, 1.45 Ω typ., 3 A SuperMESH™ Power MOSFETs in IPAK and DPAK packages TAB 3 IPAK 12 G(1) D(2, TAB) S(3) TAB 23 1 DPAK Features Order codes VDS RDS(on) max. STD5NK40Z-1 STD5NK40ZT4 400 V 1.80 Ω • 100% avalanche tested • Gate charge minimized • Very low intrinsic capacitance • Zener-protected PTOT 45 W Package IPAK DPAK Applications • Switching applications Description AM01475V1 These high-voltage devices are Zener-protected N-channel Power MOSFETs developed using the SuperMESH™ technology by STMicroelectronics, an optimization of the well-established PowerMESH™.
