STC6NF30V - N-CHANNEL POWER MOSFET

ST Microelectronics

The STC6NF30V by ST Microelectronics is a N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STC6NF30V N-CHANNEL POWER MOSFET by ST Microelectronics - Datasheet Preview — Official preview page of the **STC6NF30V** N-CHANNEL POWER MOSFET datasheet (ST Microelectronics).

Datasheet Details

Part number	STC6NF30V
Manufacturer	STMicroelectronics
File Size	297.13 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STC6NF30V_STMicroelectronics.pdf

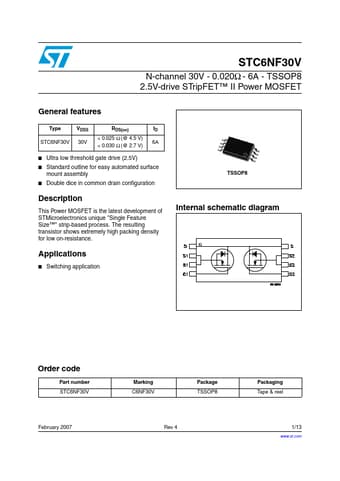

Additional preview pages of the STC6NF30V datasheet.

STC6NF30V Product details

Description

This Power MOSFET is the latest development of STMicroelectronics unique "Single Feature Size™" strip-based process. Switching application Order code Part number STC6NF30V Marking C6NF30V Package TSSOP8 Packaging Tape & reel February 2007 Rev 4 1/13 www.st.com 13 Contents STC6NF30V Contents 1 2 Electrical ratings

Features

Type STC6NF30V.
VDSS 30V RDS(on) < 0.025 Ω (@ 4.5 V) < 0.030 Ω (@ 2.7 V) ID 6A Ultra low threshold gate drive (2.5V) Standard outline for easy automated surface mount assembly Double dice in common drain configuration TSSOP8.
