STC08DE150HP - Hybrid Emitter Switched Bipolar Transistor

ST Microelectronics

The STC08DE150HP by ST Microelectronics is a Hybrid Emitter Switched Bipolar Transistor. Below is the official datasheet preview.

📥 Download Datasheet

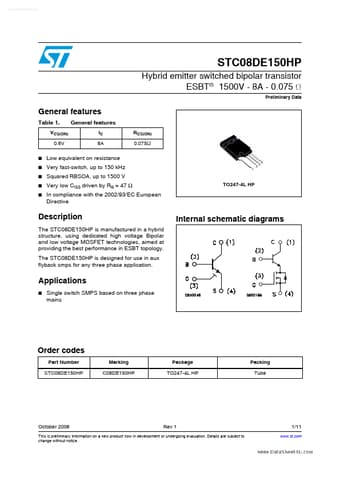

STC08DE150HP Hybrid Emitter Switched Bipolar Transistor by ST Microelectronics - Datasheet Preview — Official preview page of the **STC08DE150HP** Hybrid Emitter Switched Bipolar Transistor datasheet (ST Microelectronics).

Datasheet Details

Part number	STC08DE150HP
Manufacturer	STMicroelectronics
File Size	327.55 KB
Description	Hybrid Emitter Switched Bipolar Transistor
Datasheet	STC08DE150HP_STMicroelectronics.pdf
Additional preview pages of the STC08DE150HP datasheet.

STC08DE150HP Product details

Description

The STC08DE150HP is manufactured in a hybrid structure, using dedicated high voltage Bipolar and low voltage MOSFET technologies, aimed at providing the best performance in ESBT topology. Single switch SMPS based on three phase mains Order codes Part Number STC08DE150HP Marking C08DE150HP Package TO247-4L HP Packing Tube October 2006 Rev 1 1/11 www.st.co

Features

Table 1. VCS(ON) 0.6V.
General features IC 8A RCS(ON) 0.075Ω Low equivalent on resistance Very fast-switch, up to 150 kHz Squared RBSOA, up to 1500 V Very low CISS driven by RG = 47 Ω In compliance with the 2002/93/EC European Directive TO247-4L HP.
