STB9NK50Z - N-Channel Enhancement Mode MOSFET

STB9NK50Z Description

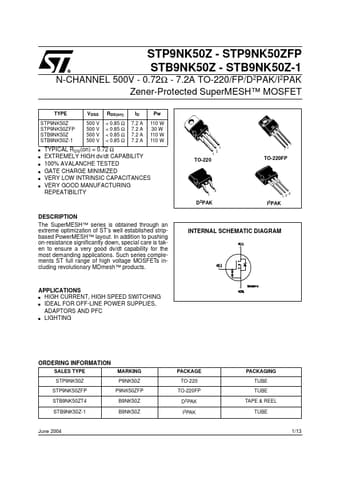

STP9NK50Z - STP9NK50ZFP STB9NK50Z - STB9NK50Z-1 N-CHANNEL 500V - 0.72Ω - 7.2A TO-220/FP/D2PAK/I2PAK Zener-Protected SuperMESH™ MOSFET TYPE VDSS RDS(.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

STB9NK50Z Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. TO-220 3 2 1 TO-220FP 3 1 D2PAK 123 I2PAK INTERNAL SCHEMATIC DIAGRAM APPLICAT
