STB80NF03L-04T N-channel Power MOSFET

STB80NF03L-04T Description

www.DataSheet4U.com STB80NF03L-04T-1 STB80NF03L-04T N-CHANNEL 30 V - 0.0035Ω - 80A D²PAK/I²PAK STripFET™II MOSFET Table 1: General .
This MOSFET is the latest development of STMicroelectronics unique “Single Feature Size™” strip-based process.

STB80NF03L-04T Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING D2PAK I2PAK Figure 2: Internal Schematic Diagram Table 2: Order Codes Part Number STB80NF03L-04TT4 STB80NF03L-04T-1 Marking B80NF03L-04T B80NF03L-04T Package D2PAK I2PAK Packaging TAPE & REEL TUBE Rev. 1 February 2005 1/11 STB80NF03L-04T-1 - STB80NF03L-04T

📥 Download Datasheet

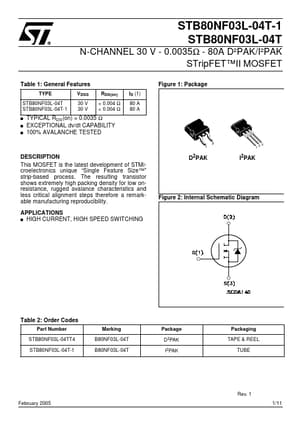

Preview of STB80NF03L-04T PDF
datasheet Preview Page 2 datasheet Preview Page 3
