STB20NM50 - N-CHANNEL POWER MOSFET

ST Microelectronics

The STB20NM50 by ST Microelectronics is a N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STB20NM50 N-CHANNEL POWER MOSFET by ST Microelectronics - Datasheet Preview — Official preview page of the **STB20NM50** N-CHANNEL POWER MOSFET datasheet (ST Microelectronics).

Datasheet Details

Part number	STB20NM50
Manufacturer	STMicroelectronics
File Size	296.99 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STB20NM50_STMicroelectronics.pdf
Additional preview pages of the STB20NM50 datasheet.

STB20NM50 Product details

Description

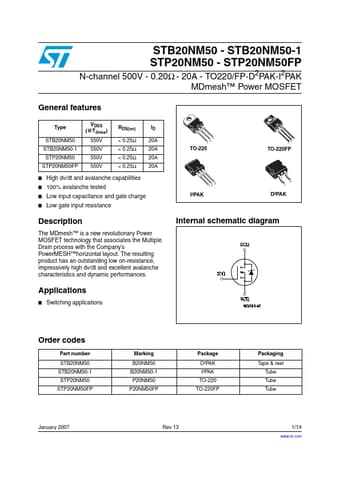

The MDmesh™ is a new revolutionary Power MOSFET technology that associates the Multiple Drain process with the Company’s PowerMESH™horizontal layout. Switching applications 3 2 1 TO-220 3 2 1 TO-220FP 123 I²PAK 3 1 D²PAK Internal schematic diagram Order codes Part number STB20NM50 STB20NM50-1 STP20NM50 STP20NM50FP Marking

Features

Type STB20NM50 STB20NM50-1 STP20NM50 STP20NM50FP VDSS (@TJmax) 550V 550V 550V 550V RDS(on) < 0.25Ω < 0.25Ω < 0.25Ω < 0.25Ω ID 20A 20A 20A 20A.
High dv/dt and avalanche capabilities.
100% avalanche tested.
Low input capacitance and gate charge.
Low gate input resistance.
