ST95010 Datasheet (ST Microelectronics) - (ST950x0) 4K/2K/1K Serial SPI EEPROM with Positive Clock Strobe

ST95010, (ST950x0) 4K/2K/1K Serial SPI EEPROM with Positive Clock Strobe

The ST950x0 is a family of Electrically Erasable Programmable Memories (EEPROM) fabricated with STMicroelectronics’s High Endurance Single Polysilicon CMOS technology.

Each memory is accessed by a simple SPI bus compatible serial interface.

The bus signals are a serial clock input (C), a serial data

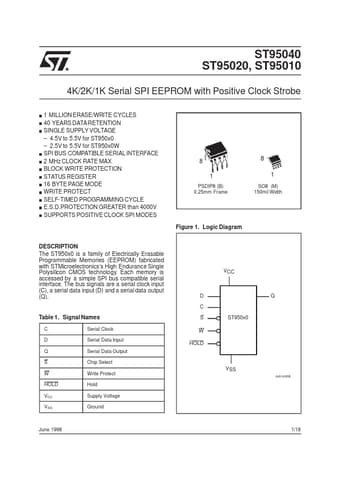

ST95040 ST95020, ST95010 4K/2K/1K Serial SPI EEPROM with Positive Clock Strobe 1 MILLION ERASE/WRITE CYCLES 40 YEARS DATA RETENTION SINGLE SUPPLY VOLTAGE 4.5V to 5.5V for ST950x0 2.5V to 5.5V for ST950x0W SPI BUS COMPATIBLE SERIAL INTERFACE 2 MHz CLOCK RATE MAX BLOCK WRITE PROTECTION STATUS REGISTER 16 BYTE PAGE MODE WRITE PROTECT SELF-TIMED PROGRAMMING CYCLE E.S.D.PROTECTION GREATER than 4000V SUPPORTS POSITIVE CLOCK SPI MODES 8 1 PSDIP8 (B) 0.25mm Frame 8 1 SO8 (M) 150mil
