ST5481 - L.O.U.I.S - LOW COST USB ISDN SOLUTION

ST Microelectronics

ST5481 Description

ST5481 L.O.U.I.S - LOW COST USB ISDN SOLUTION PRODUCT PREVIEW HARDWARE .
ST5481 combines ISDN link access and an USB interface to allow a very simple USB/ISDN modem design with all ISDN protocols and upper applications proc.

ST5481 Applications

* processed into the HOST PC. s FULL-DUPLEX TRANSMISSION AT 192KBps ON SEPARATE TRANSMIT AND RECEIVE TWISTED PAIRS USING ALTERNATE MARK INVERSION (AMI) LINE CODING s 2 B CHANNELS AT 64KBps EACH PLUS 1 D CHANNEL AT 16KBps s ALL I.430 WIRING CONFIGURATIONS SUPPORTED INCLUDING PASSIVE BUS FOR TE’S DI

📥 Download Datasheet

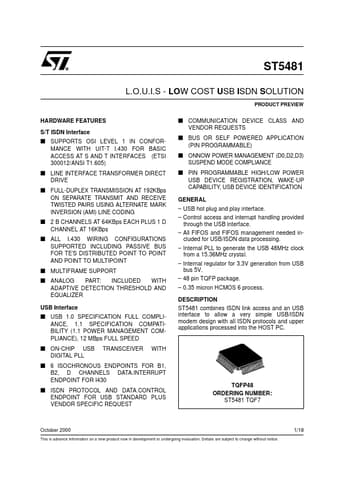

ST5481 Datasheet Preview — Preview of ST5481 PDF

Datasheet Details

Part number: ST5481
Manufacturer: STMicroelectronics ↗
File Size: 167.14 KB
Datasheet: ST5481_STMicroelectronics.pdf
Description: L.O.U.I.S - LOW COST USB ISDN SOLUTION
