ST232 5V POWERED MULTI-CHANNEL RS-232 DRIVERS AND RECEIVERS

ST232 Description

® ST232 5V POWERED MULTI-CHANNEL RS-232 DRIVERS AND RECEIVERS s s s s s s s s SUPPLY VOLTAGE RANGE: 4.5 TO 5.5V SUPPLY CURRENT NO LOAD (TYP): 5mA.
The ST232 is a 2 driver, 2 receiver device following EIA/TIA-232 and V.

ST232 Applications

* where ±12V is not available. The ST232 uses a single 5V power supply and only four external capacitors (0.1µF). Typical applications are in: Portable Computers, Low Power Modems, Interfaces Translation, Battery Powered RS-232 System, Multi-Drop RS-232 Networks. W (Micro Package Large) T (TSSOP Pac

📥 Download Datasheet

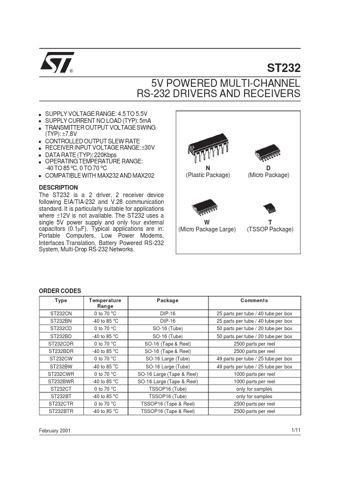

Preview of ST232 PDF
datasheet Preview Page 2 datasheet Preview Page 3
