ST19KF16, Smartcard MCU With 1088 Bits Modular Arithmetic Processor

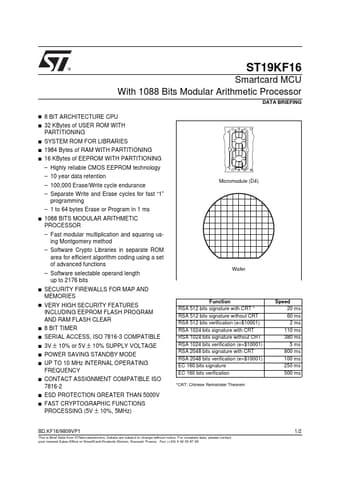

® ST19KF16 Smartcard MCU With 1088 Bits Modular Arithmetic Processor DATA BRIEFING s s 8 BIT ARCHITECTURE CPU 32 KBytes of USER ROM WITH PARTITIONI

Features

* INCLUDING EEPROM FLASH PROGRAM AND RAM FLASH CLEAR 8 BIT TIMER SERIAL ACCESS, ISO 7816-3 COMPATIBLE 3V ± 10% or 5V ± 10% SUPPLY VOLTAGE POWER SAVING STANDBY MODE UP TO 10 MHz INTERNAL OPERATING FREQUENCY CONTACT ASSIGNMENT COMPATIBLE ISO 7816-2 ESD PROTECTION GREATER THAN 5000V FAST CRYPTOGRAPHIC FU

Applications

* SOFTWARE SUPPORT SOFTWARE DEVELOPMENT Software development and firmware (ROM code/ options) generation are completed by the ST16-19 HDS development system. Figure 1. Block Diagram a RAM EEPROM USER ROM SYSTEM ROM AND CRYPTO LIBRARIES CRYPTO LIBRARIES For an easy and efficient use of the Modular Ar
