NAND02G-B2C, NAND01G-B2B - (NAND0xG-B2x) NAND Flash Memory

NAND02G-B2C Description

www.DataSheet4U.com NAND01G-B2B NAND02G-B2C 1 Gbit, 2 Gbit, 2112 Byte/1056 Word Page, 1.8V/3V, NAND Flash Memory .

NAND02G-B2C Features

* High Density NAND Flash memories

NAND02G-B2C Applications

* x8 or x16 bus width Multiplexed Address/ Data Pinout compatibility for all densities FBGA
* NAND interface
* TSOP48 12 x 20mm
* Supply voltage: 1.8V/3.0V Page size
* x8 device: (2048 + 64 spare) Bytes x16 device: (1024 + 32 spare) Words

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NAND02G-B2C, NAND01G-B2B. Please refer to the document for exact specifications by model.

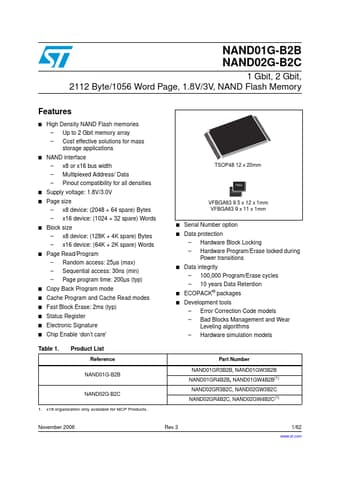

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NAND02G-B2C, NAND01G-B2B
Manufacturer
STMicroelectronics ↗
File Size
707.97 KB
Datasheet
NAND01G-B2B_STMicroelectronics.pdf
Description
(NAND0xG-B2x) NAND Flash Memory
Note
This datasheet PDF includes multiple part numbers: NAND02G-B2C, NAND01G-B2B.
Please refer to the document for exact specifications by model.
