M50LPW116 - 16 Mbit 2Mb x8/ Boot Block 3V Supply Low Pin Count Flash Memory

ST Microelectronics

The M50LPW116 by ST Microelectronics is a 16 Mbit 2Mb x8/ Boot Block 3V Supply Low Pin Count Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

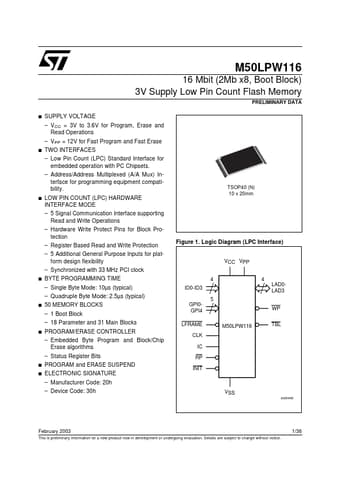

M50LPW116 16 Mbit 2Mb x8/ Boot Block 3V Supply Low Pin Count Flash Memory by ST Microelectronics - Datasheet Preview — Official preview page of the **M50LPW116** 16 Mbit 2Mb x8/ Boot Block 3V Supply Low Pin Count Flash Memory datasheet (ST Microelectronics).

Datasheet Details

Part number	M50LPW116
Manufacturer	STMicroelectronics
File Size	259.83 KB
Description	16 Mbit 2Mb x8/ Boot Block 3V Supply Low Pin Count Flash Memory
Datasheet	M50LPW116_STMicroelectronics.pdf
Additional preview pages of the M50LPW116 datasheet.

M50LPW116 Product details

Description

The M50LPW116 is a 16 Mbit (2Mb x8) nonvolatile memory that can be read, erased and reprogrammed.

Features

an asymmetrical block architecture. It has an array of 50 blocks: 1 Boot Block of 16KBytes, 2 Parameter Blocks of VCC VPP 11 A0-A10 8 DQ0-DQ7 RC IC G W RP M50LPW116 RB VSS AI05468 Figure 3. TSOP Connections NC IC (VIH) NC NC NC NC A10 NC RC VCC VPP RP NC NC A9 A8 A7 A6 A5 A4 NC IC (VIL) NC NC NC NC GPI4 NC CLK VCC VPP RP NC NC GPI3 GPI2 GPI1 GPI0 WP TBL 1 40 10 31 M50LPW116 11 30 20 21 VSS VCC LFRAME INIT RFU RFU RFU RFU RFU VCC VSS VSS LAD3 LAD2 LAD1 LAD0 ID0 ID1 ID2 ID3 VSS VCC W.
