M25P64 - Serial Flash Memory

Product Overview

ST Microelectronics

Part number	M25P64
Manufacturer	STMicroelectronics
File Size	379.27 KB
Description	Serial Flash Memory
Datasheet	M25P64 Datasheet

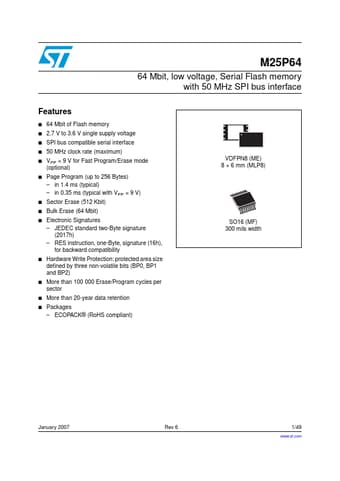

Additional preview pages of the M25P64 datasheet.

. . 9 Serial Data Input (D) .

64 Mbit of Flash memory 2.7 V to 3.6 V single supply voltage SPI bus compatible serial interface 50 MHz clock rate (maximum) VPP = 9 V for Fast Program/Erase mode (optional) Page Program (up to 256 Bytes).
in 1.4 ms (typical).
in 0.35 ms (typical with VPP = 9 V) Sector Erase (512 Kbit) Bulk Erase (64 Mbit) Electronic Signatures.
JEDEC standard two-Byte signature (2017h).
RES instruction, one-Byte, signature (16h), for backward co.
