LCP150S - PROGRAMMABLE TRANSIENT VOLTAGE SUPPRESSOR FOR SLIC PROTECTION

📥 Download Datasheet

Preview of LCP150S PDF
datasheet Preview Page 2 datasheet Preview Page 3

LCP150S Product details

Description

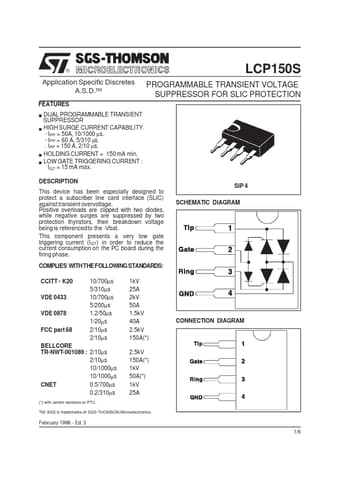

SIP 4 SCHEMATIC DIAGRAM This device has been especially designed to protect a subscriber line card interface (SLIC) against transient overvoltage.Positive overloads are clipped with two diodes, while negative surges are suppressed by two protection thyristors, their breakdown voltage being is referencedto the -Vbat.This component presents a very low gate triggering current (I GT) in order to reduce the current consumption on the PC board during the firing phase.COMPLIES WITHTHE FOLLOWING ST
