SZN6340 - (SZN6309 - SZN6355) ZENER DIODES

Download the SZN6340 datasheet PDF. This datasheet also covers the SZN6309 variant, as both devices belong to the same (szn6309 - szn6355) zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Hermetically Sealed in Glass.
  • Rated at 0.5 W.
  • Category III Metallurgical Bond.
  • Available in Axial and Square Tab Surface Mount (SMS).
  • version Available to TX, TXV, and Space Levels 2/ Zener Voltage 5%, 2% or 1% Tolerance Replacement for 1N6309 thru 1N6333 Maximum Ratings Nominal Zener Voltage Maximum Zener Current Forward Surge Current (8.3 msec Pulse) Continuous Power Operating and Storage Temp. Thermal Resistance, Junction to Lead L=3/8” (Axial) http://w.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SZN6309_SSDI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SZN6340
Manufacturer SSDI
File Size 236.69 KB
Description (SZN6309 - SZN6355) ZENER DIODES
Datasheet download datasheet SZN6340 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SZNCP3712ASN Over Voltage Protected High Side Switch ON Semiconductor
SZNS6A10AFT3G TVS Diodes Littelfuse
SZNS6A11AFT3G TVS Diodes Littelfuse
SZNS6A12AFT3G TVS Diodes Littelfuse
SZNS6A13AFT3G TVS Diodes Littelfuse

Other Datasheets by SSDI

Part Number Description
SZN6341 (SZN6309 - SZN6355) ZENER DIODES
SZN6342 (SZN6309 - SZN6355) ZENER DIODES
SZN6343 (SZN6309 - SZN6355) ZENER DIODES
SZN6344 (SZN6309 - SZN6355) ZENER DIODES
SZN6345 (SZN6309 - SZN6355) ZENER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

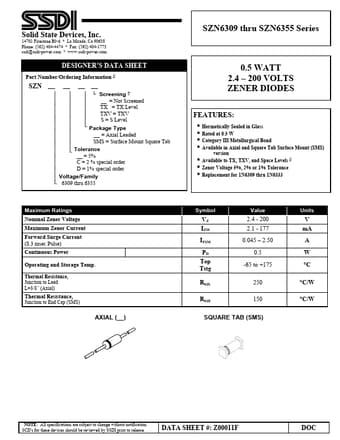

Solid State Devices, Inc. 14701 Firestone Blvd * La Mirada, Ca 90638 Phone: (562) 404-4474 * Fax: (562) 404-1773 ssdi@ssdi-power.com * www.ssdi-power.com SZN6309 thru SZN6355 Series DESIGNER’S DATA SHEET Part Number/Ordering Information 1/ SZN __ __ __ __ │ │ │ └ Screening 2/ __ = Not Screened │ │ │ TX = TX Level │ │ │ TXV = TXV │ │ │ S = S Level │ │ │ │ │ └ Package Type │ │ __ = Axial Leaded │ │ SMS = Surface Mount Square Tab │ │ │ └ Tolerance __ = 5% │ C = 2 % special order │ D = 1% special order │ │ Voltage/Family └ 6309 thru 6355 0.5 WATT 2.4 – 200 VOLTS ZENER DIODES FEATURES:  Hermetically Sealed in Glass  Rated at 0.
