SZN6334 - (SZN6309 - SZN6355) ZENER DIODES

Download the SZN6334 datasheet PDF (SZN6309 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (szn6309 - szn6355) zener diodes.

Features

  • Hermetically Sealed in Glass.
  • Rated at 0.5 W.
  • Category III Metallurgical Bond.
  • Available in Axial and Square Tab Surface Mount (SMS).
  • version Available to TX, TXV, and Space Levels 2/ Zener Voltage 5%, 2% or 1% Tolerance Replacement for 1N6309 thru 1N6333 Maximum Ratings Nominal Zener Voltage Maximum Zener Current Forward Surge Current (8.3 msec Pulse) Continuous Power Operating and Storage Temp. Thermal Resistance, Junction to Lead L=3/8” (Axial) http://w.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SZN6309_SSDI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SZN6334
Manufacturer SSDI
File Size 236.69 KB
Description (SZN6309 - SZN6355) ZENER DIODES
Datasheet download datasheet SZN6334 Datasheet

📁 Similar Datasheet

Other Datasheets by SSDI
  • SZN6330 - (SZN6309 - SZN6355) ZENER DIODES
  • SZN6331 - (SZN6309 - SZN6355) ZENER DIODES
  • SZN6332 - (SZN6309 - SZN6355) ZENER DIODES
  • SZN6333 - (SZN6309 - SZN6355) ZENER DIODES
  • SZN6335 - (SZN6309 - SZN6355) ZENER DIODES
  • SZN6336 - (SZN6309 - SZN6355) ZENER DIODES
  • SZN6337 - (SZN6309 - SZN6355) ZENER DIODES
  • SZN6338 - (SZN6309 - SZN6355) ZENER DIODES

Full PDF Text Transcription

Click to expand full text

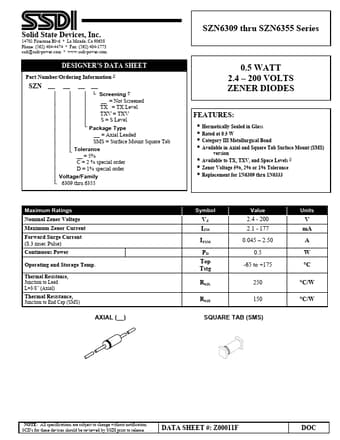

Solid State Devices, Inc. 14701 Firestone Blvd * La Mirada, Ca 90638 Phone: (562) 404-4474 * Fax: (562) 404-1773 ssdi@ssdi-power.com * www.ssdi-power.com SZN6309 thru SZN6355 Series DESIGNER’S DATA SHEET Part Number/Ordering Information 1/ SZN __ __ __ __ │ │ │ └ Screening 2/ __ = Not Screened │ │ │ TX = TX Level │ │ │ TXV = TXV │ │ │ S = S Level │ │ │ │ │ └ Package Type │ │ __ = Axial Leaded │ │ SMS = Surface Mount Square Tab │ │ │ └ Tolerance __ = 5% │ C = 2 % special order │ D = 1% special order │ │ Voltage/Family └ 6309 thru 6355 0.5 WATT 2.4 – 200 VOLTS ZENER DIODES FEATURES:  Hermetically Sealed in Glass  Rated at 0.
