SZN6310 (SZN6309 - SZN6355) ZENER DIODES

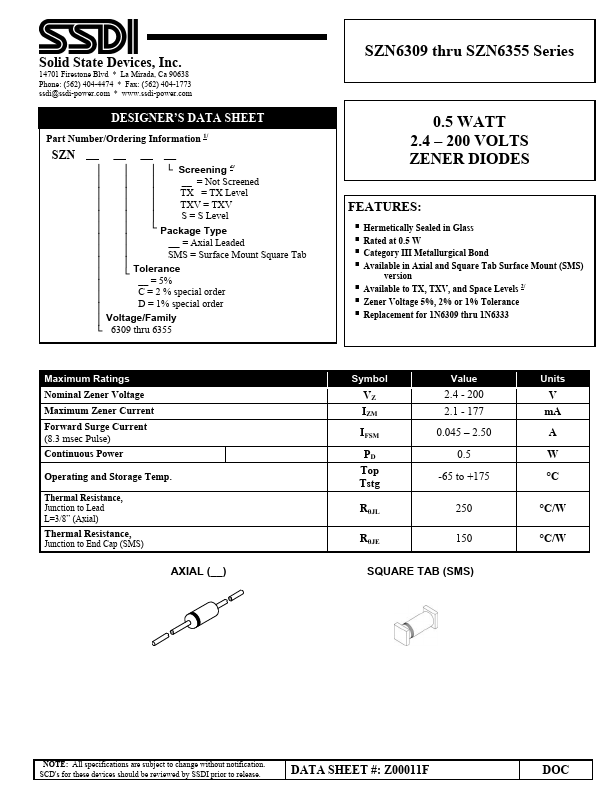

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com SZN6309 thru SZN6355 Series DESIGNER’S DATA SHEET Part Number/Ordering Information 1/ SZN __ __ __ __ │ │ │ └ Screening 2/ __ = Not Screened │ │ │ TX = TX Level │ │ │ TXV = TXV │ │ │ S = S Level │ │ │ │ │ └ Package Type │ │ __ = Axial Leaded │ │ SMS = Surface Mount Square Tab │ │ │ └ Tolerance __ = 5% │ C = 2 % special order .

SZN6310 Features

* Hermetically Sealed in Glass

* Rated at 0.5 W

* Category III Metallurgical Bond

* Available in Axial and Square Tab Surface Mount (SMS)

* version Available to TX, TXV, and Space Levels 2/ Zener Voltage 5%, 2% or 1% Tolerance Replacement for 1N6309 thru 1N6333 Maxi

SZN6309_SSDI.pdf

SZN6310 Datasheet Preview — This datasheet PDF includes multiple part numbers: SZN6310, SZN6309. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SZN6310, SZN6309

Manufacturer:

SSDI

File Size:

236.69 KB

Description:

(szn6309 - szn6355) zener diodes.

Note:

This datasheet PDF includes multiple part numbers: SZN6310, SZN6309.
Please refer to the document for exact specifications by model.
