SPBM505-4.2X4, SPBM505-42X1 - (SPBM505-4.2X1/X4) 300 AMPS DISCHARGE 20 AMPS CHARGE CURRENT PROGRAMABLE BATTERY BYPASS MODULE

Name: SPBM505-4.2X4
SKU: SPBM505-4.2X4-596592

SSDI

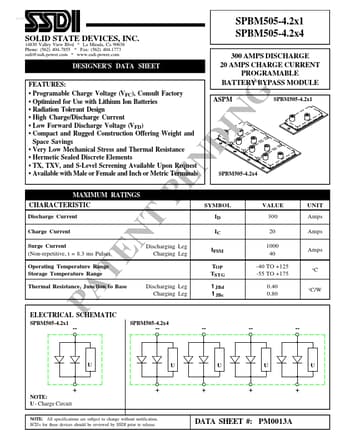

The SPBM505-4.2X4 by SSDI is a (SPBM505-4.2X1/X4) 300 AMPS DISCHARGE 20 AMPS CHARGE CURRENT PROGRAMABLE BATTERY BYPASS MODULE. Below is the official datasheet preview.

📥 Download Datasheet

SPBM505-4.2X4 (SPBM505-4.2X1/X4) 300 AMPS DISCHARGE 20 AMPS CHARGE CURRENT PROGRAMABLE BATTERY BYPASS MODULE by SSDI - Datasheet Preview — Official preview page of the **SPBM505-4.2X4** (SPBM505-4.2X1/X4) 300 AMPS DISCHARGE 20 AMPS CHARGE CURRENT PROGRAMABLE BATTERY BYPASS MODULE datasheet (SSDI).

Datasheet Details

Part number	SPBM505-4.2X4, SPBM505-42X1
Manufacturer	SSDI
File Size	61.49 KB
Description	(SPBM505-4.2X1/X4) 300 AMPS DISCHARGE 20 AMPS CHARGE CURRENT PROGRAMABLE BATTERY BYPASS MODULE
Datasheet	SPBM505-42X1_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SPBM505-4.2X4, SPBM505-42X1. Please refer to the document for exact specifications by model.
Additional preview pages of the SPBM505-4.2X4 datasheet.

SPBM505-4.2X4 Product details

Features

Programable Charge Voltage (VFC), Consult Factory.
Optimized for Use with Lithium Ion Batteries.
Radiation Tolerant Design.
High Charge/Discharge Current.
Low Forward Discharge Voltage (VFD).
Compact and Rugged Construction Offering Weight and Space Savings.
Very Low Mechanical Stress and Thermal Resistance.
Hermetic Sealed Discrete Elements.
TX, TXV, and S-Level Screening Available Upon Request.
Availabl.
