SDR9MF - (SDR9xF) FAST RECOVERY RECTIFIER

Download the SDR9MF datasheet PDF (SDR9JF included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (sdr9xf) fast recovery rectifier.

Features

  • Designer’s Data Sheet Part Number/Ordering Information 1/ SDR9 __ __ __ │ │ │ │ │ │ │ │ │ │ └ │ └ Screening 2/ │ __ = Not Screened │ TX = TX Level │ TXV = TXV │ S = S Level │ └ Package Type __ = Axial Leaded SMS = Surface Mount Square Tab ASMS = SMS with .145/.155” End Tab Size Voltage/Family JF = 600V KF = 800V MF = 1000V.
  • Fast Reverse Recovery: 250ns Maximum 4/ PIV to 1000 Volts Hermeticall.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SDR9JF_SSDI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SDR9MF
Manufacturer SSDI
File Size 174.72 KB
Description (SDR9xF) FAST RECOVERY RECTIFIER
Datasheet download datasheet SDR9MF Datasheet

📁 Similar Datasheet

  • SDR-120 - 120W Single Output Industrial DIN RAIL (Mean Well)
  • SDR-240 - 240W Single Output Industrial DIN RAIL (Mean Well)
  • SDR-3001 - Software Defined Radio Transceiver Platform (ETC)
  • SDR-480 - 480W Single Output Industrial DIN RAIL (Mean Well)
  • SDR-480P - 480W Single Output Industrial DIN RAIL (Mean Well)
  • SDR-75 - 75W Single Output Industrial DIN RAIL (Mean Well)
  • SDR-960 - 960W Single Output Industrial DIN RAIL (Mean Well)
  • SDR03 - Anti-surge Thick Film Chip Resistors (Rohm)
  • SDR0403 - SMD Power Inductors (Bourns Electronic Solutions)
  • SDR0503 - SMD Power Inductor (BOURNS)
Other Datasheets by SSDI
  • SDR9MFSMS - (SDR9xFSMS) FAST RECOVERY RECTIFIER
  • SDR9MUF - (SDR9xUF) ULTRA FAST RECOVERY RECTIFIER
  • SDR9MUFSMS - (SDR9xUFSMS) ULTRA FAST RECOVERY RECTIFIER
  • SDR900 - (SDR900 - SDR905) ULTRA FAST RECTIFIER
  • SDR901 - (SDR900 - SDR905) ULTRA FAST RECTIFIER
  • SDR902 - (SDR900 - SDR905) ULTRA FAST RECTIFIER
  • SDR903 - (SDR900 - SDR905) ULTRA FAST RECTIFIER
  • SDR904 - (SDR900 - SDR905) ULTRA FAST RECTIFIER

Full PDF Text Transcription

Click to expand full text

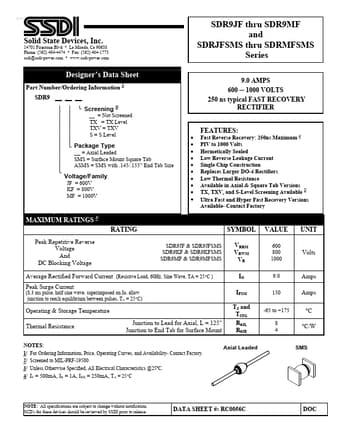

www.DataSheet4U.com Solid State Devices, Inc. 14701 Firestone Blvd * La Mirada, Ca 90638 Phone: (562) 404-4474 * Fax: (562) 404-1773 ssdi@ssdi-power.com * www.ssdi-power.com SDR9JF thru SDR9MF and SDRJFSMS thru SDRMFSMS Series 9.0 AMPS 600 ─ 1000 VOLTS 250 ns typical FAST RECOVERY RECTIFIER FEATURES: Designer’s Data Sheet Part Number/Ordering Information 1/ SDR9 __ __ __ │ │ │ │ │ │ │ │ │ │ └ │ └ Screening 2/ │ __ = Not Screened │ TX = TX Level │ TXV = TXV │ S = S Level │ └ Package Type __ = Axial Leaded SMS = Surface Mount Square Tab ASMS = SMS with .145/.
