SDR950S1 - (SDR950S1 - SDR952S1) Hyper Fast Rectifier

Features

  • Hyper Fast Recovery: 35nsec typical.
  • High Surge Rating.
  • Low Reverse Leakage Current.
  • Low Junction Capacitance.
  • Hermetically Sealed Surface Mount Power Package.
  • Gold Eutectic Die Attach Available.
  • Ultrasonic Aluminum Wire Bonds.
  • TX, TXV, and Space Level Screening Available. Maximum Ratings Peak Repetitive Reverse and DC Blocking Voltage 1/ SDR950S1 SDR951S1 SDR952S1 Symbol VRRM VRWM VR Io Value 100 150 200 Units Volts.

📥 Download Datasheet

Datasheet Details

Part number SDR950S1
Manufacturer SSDI
File Size 60.71 KB
Description (SDR950S1 - SDR952S1) Hyper Fast Rectifier
Datasheet download datasheet SDR950S1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SDR-120 120W Single Output Industrial DIN RAIL Mean Well
SDR-240 240W Single Output Industrial DIN RAIL Mean Well
SDR-3001 Software Defined Radio Transceiver Platform ETC
SDR-480 480W Single Output Industrial DIN RAIL Mean Well
SDR-480P 480W Single Output Industrial DIN RAIL Mean Well

Other Datasheets by SSDI

Part Number Description
SDR950-3 HYPER FAST RECTIFIER
SDR950-61 HYPER FAST RECTIFIER
SDR950CT-3 HYPER FAST RECTIFIER
SDR950E (SDR950E - SDR952E) HYPER FAST RECTIFIER
SDR950M (SDR950M - SDR952M) Hyper Fast Rectifier

Full PDF Text Transcription

Click to expand full text

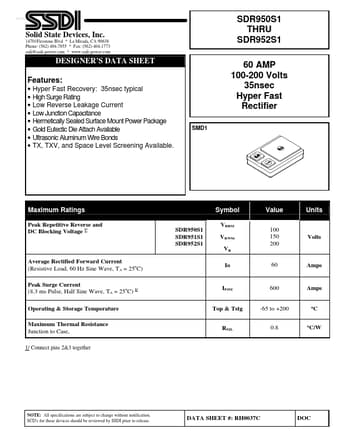

www.DataSheet4U.com Solid State Devices, Inc. 14701Firestone Blvd * La Mirada, CA 90638 Phone: (562) 404-7855 * Fax: (562) 404-1773 ssdi@ssdi-power.com * www.ssdi-power.com SDR950S1 THRU SDR952S1 60 AMP 100-200 Volts 35nsec Hyper Fast Rectifier SMD1 DESIGNER’S DATA SHEET Features: • Hyper Fast Recovery: 35nsec typical • High Surge Rating • Low Reverse Leakage Current • Low Junction Capacitance • Hermetically Sealed Surface Mount Power Package • Gold Eutectic Die Attach Available • Ultrasonic Aluminum Wire Bonds • TX, TXV, and Space Level Screening Available.
