SDR622J, SDR620J - (SDR620x - SDR622x) Hyper Fast Rectifier

Name: SDR622J
SKU: SDR622J-597664

SSDI

The SDR622J by SSDI is a (SDR620x - SDR622x) Hyper Fast Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	SDR622J, SDR620J
Manufacturer	SSDI
File Size	254.90 KB
Description	(SDR620x - SDR622x) Hyper Fast Rectifier
Datasheet	SDR620J_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SDR622J, SDR620J. Please refer to the document for exact specifications by model.

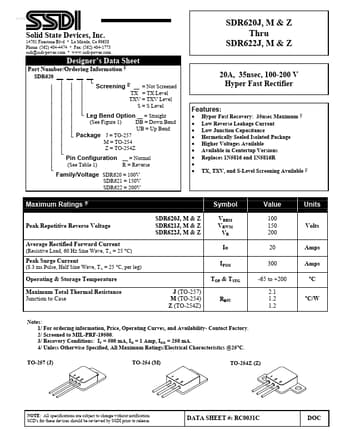

Additional preview pages of the SDR622J datasheet.

Pin Configuration __ = Normal (See Table 1) R = Reverse SDR621 = 150V SDR622 = 200V Hyper Fast Recovery: 35nsec Maximum 3/ Low Reverse Leakage Current Low Junction Capacitance Hermetically Sealed Isolated Package Higher Voltages Available Available in Centertap Versions Replaces 1N5816 and 1N5816R TX, TXV, and S-Level Screening Available 2/ Family/Voltage SDR620 = 100V Maximum Ratings 4/ Peak Repetitiv.
