SDR620J - (SDR620x - SDR622x) Hyper Fast Rectifier

Datasheet Details

Part number	SDR620J
Manufacturer	SSDI
File Size	254.90 KB
Description	(SDR620x - SDR622x) Hyper Fast Rectifier

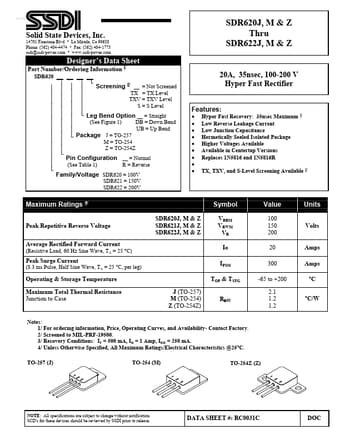

Datasheet	SDR620J_SSDI.pdf

Pin Configuration __ = Normal (See Table 1) R = Reverse SDR621 = 150V SDR622 = 200V Hyper Fast Recovery: 35nsec Maximum 3/ Low Reverse Leakage Current Low Junction Capacitance Hermetically Sealed Isolated Package Higher Voltages Available Available in Centertap Versions Replaces 1N5816 and 1N5816R TX, TXV, and S-Level Screening Available 2/ Family/Voltage SDR620 = 100V Maximum Ratings 4/ Peak Repetitiv.
