SDR522CT - (SDR520CT - SDR522CT) Hyper Fast Center tap Rectifier

Download the SDR522CT datasheet PDF (SDR520CT included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (sdr520ct - sdr522ct) hyper fast center tap rectifier.

Features

  • Hyper Fast Recovery: 28nsec Maximum High Surge Rating Low Reverse Leakage Current Low Junction Capacitance Hermetically Sealed Package Eutectic Die Attach TX, TXV, and S Level Screening Available Higher Voltages Available.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SDR520CT_SSDI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SDR522CT
Manufacturer SSDI
File Size 192.68 KB
Description (SDR520CT - SDR522CT) Hyper Fast Center tap Rectifier
Datasheet download datasheet SDR522CT Datasheet

📁 Similar Datasheet

  • SDR5200S - 5.0AMP Schottky Barrier Rectifiers (SeCoS)
  • SDR5100SF - Schottky Barrier Rectifiers (SeCoS)
  • SDR5150S - Schottky Barrier Rectifiers (SeCoS)
  • SDR560S - Schottky Barrier Rectifiers (SeCoS)
  • SDR560SF - Schottky Barrier Rectifiers (SeCoS)
  • SDR5832 - SMD Unshielded Power Inductor (SPORTON)
  • SDR5845 - SMD Unshielded Power Inductor (SPORTON)
  • SDR-120 - 120W Single Output Industrial DIN RAIL (Mean Well)
  • SDR-240 - 240W Single Output Industrial DIN RAIL (Mean Well)
  • SDR-3001 - Software Defined Radio Transceiver Platform (ETC)
Other Datasheets by SSDI
  • SDR520CT - (SDR520CT - SDR522CT) Hyper Fast Center tap Rectifier
  • SDR521CT - (SDR520CT - SDR522CT) Hyper Fast Center tap Rectifier
  • SDR526 - (SDR526 - SDR529) HYPER FAST RECTIFIER
  • SDR526SMS - (SDR526SMS - SDR529SMS) HYPER FAST RECTIFIER
  • SDR527 - (SDR526 - SDR529) HYPER FAST RECTIFIER
  • SDR527SMS - (SDR526SMS - SDR529SMS) HYPER FAST RECTIFIER
  • SDR528 - (SDR526 - SDR529) HYPER FAST RECTIFIER
  • SDR528SMS - (SDR526SMS - SDR529SMS) HYPER FAST RECTIFIER

Full PDF Text Transcription

Click to expand full text

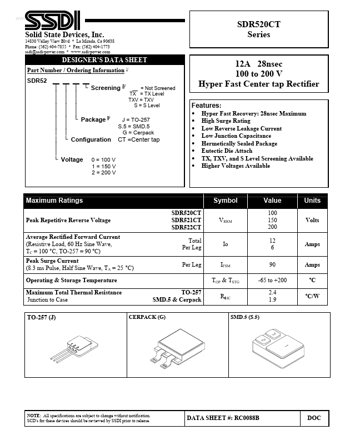

www.DataSheet4U.com Solid State Devices, Inc. 14830 Valley View Blvd * La Mirada, Ca 90638 Phone: (562) 404-7855 * Fax: (562) 404-1773 ssdi@ssdi-power.com * www.ssdi-power.com SDR520CT Series 12A 28nsec 100 to 200 V Hyper Fast Center tap Rectifier Features: • • • • • • • • Hyper Fast Recovery: 28nsec Maximum High Surge Rating Low Reverse Leakage Current Low Junction Capacitance Hermetically Sealed Package Eutectic Die Attach TX, TXV, and S Level Screening Available Higher Voltages Available DESIGNER’S DATA SHEET Part Number / Ordering Information 1/ SDR52 __ __ __ __ │ │ │ └ Screening 2/ __ = Not Screened │ │ │ TX = TX Level TXV = TXV │ │ │ S = S Level │ │ │ │ │ │ │ │ └ Package 3/ J = TO-257 │ │ S.5 = SMD.
Published: |
