SDA382C, SDA382A - (SDA382A - SDA382G) ULTRAFAST CENTERTAP RECTIFIER

Name: SDA382C
SKU: SDA382C-597257

SSDI

The SDA382C by SSDI is a (SDA382A - SDA382G) ULTRAFAST CENTERTAP RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	SDA382C, SDA382A
Manufacturer	SSDI
File Size	107.28 KB
Description	(SDA382A - SDA382G) ULTRAFAST CENTERTAP RECTIFIER
Datasheet	SDA382A_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SDA382C, SDA382A. Please refer to the document for exact specifications by model.

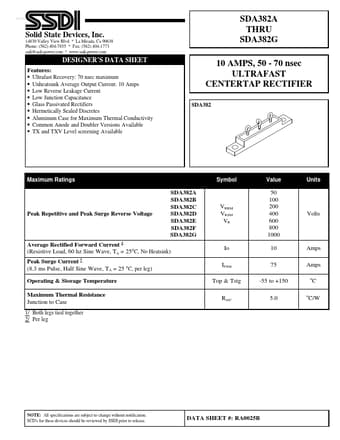

Additional preview pages of the SDA382C datasheet.

: Ultrafast Recovery: 70 nsec maximum Unheatsunk Average Output Current: 10 Amps Low Reverse Leakage Current Low Junction Capacitance Glass Passivated Rectifiers Hermetically Sealed Discretes Aluminum Case for Maximum Thermal Conductivity Common Anode and Doubler Versions Available TX and TXV Level screening Available Maximum Ratings Symbol Value Units Peak Repetitive and Peak Surge Reverse Voltage SDA382A SDA382B SDA382C SDA382D SDA382E SDA382F SDA382G VRRM VRSM VR 50 100 200 400 600 80.
