SDA263CF-3 - (SDA263xF-3) FAST RECOVERY THREE PHASE BRIDGE RECTIFIER

Product Overview

SSDI

📥 Download Datasheet

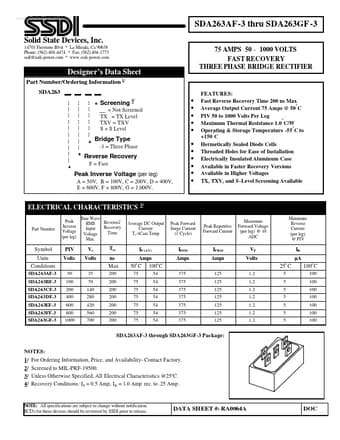

SDA263CF-3 (SDA263xF-3) FAST RECOVERY THREE PHASE BRIDGE RECTIFIER by SSDI - Datasheet Preview — Datasheet preview – SDA263CF-3

Datasheet Details

Part number	SDA263CF-3
Manufacturer	SSDI
File Size	49.53 KB
Description	(SDA263xF-3) FAST RECOVERY THREE PHASE BRIDGE RECTIFIER
Datasheet	SDA263CF-3 Datasheet
Note	This datasheet PDF includes multiple part numbers: SDA263CF-3, SDA263AF-3. Please refer to the document for exact specifications by model.
Additional preview pages of the SDA263CF-3 datasheet.

Product details

Features

Fast Reverse Recovery Time 200 ns Max ° Average Output Current 75 Amps @ 50 C PIV 50 to 1000 Volts Per Leg ° Maximum Thermal Resistance 1.0 C/W ° Operating & Storage Temperature -55 C to ° +150 C Hermetically Sealed Diode Cells Threaded Holes for Ease of Installation Electrically Insulated Aluminum Case Available in Faster Recovery Versions Available in Higher Voltages TX, TXV, and S-Level Screening Available.
