SDA2500F, SDA10000F (SDA2500F - SDA25000F) FAST RECOVERY RECTIFIER ASSEMBLY

SDA2500F Description

www.DataSheet4U.com PRELIMINARY SOLID STATE DEVICES, INC.14005 Stage Road * Santa Fe Springs, Ca 90670 Phone: (562) 404-4474 * Fax: (562) 4.

SDA2500F Features

* • • • • • • • • • Average Output Current 0.5Amps 2500 to 25000 V Blocking Voltage Ultrafast Recovery: 180 nsec Maximum Low Reverse Leakage Current Corona Free Construction Glass Passivated Rectifiers Hermetically Sealed Discretes Superior Thermal Shock Resistance TX and TXV Level Screening Availabl

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SDA2500F, SDA10000F. Please refer to the document for exact specifications by model.

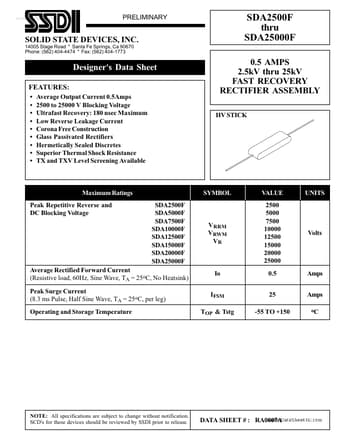

datasheet Preview Page 2

Datasheet Details

Part number
SDA2500F, SDA10000F
Manufacturer
SSDI
File Size
86.04 KB
Datasheet
SDA10000F_SSDI.pdf
Description
(SDA2500F - SDA25000F) FAST RECOVERY RECTIFIER ASSEMBLY
Note
This datasheet PDF includes multiple part numbers: SDA2500F, SDA10000F.
Please refer to the document for exact specifications by model.
