MP13N50 - Power MOSFET

The MP13N50 by SPMICRO is a Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	MP13N50
Manufacturer	SPMICRO
File Size	1.31 MB
Description	Power MOSFET
Datasheet	MP13N50-SPMICRO.pdf

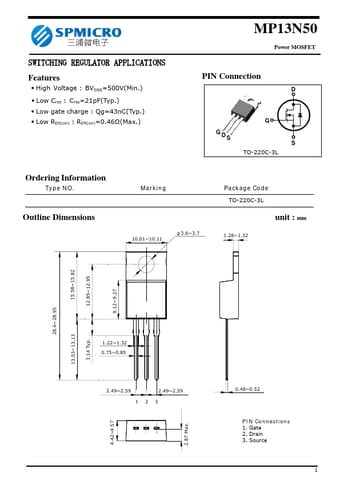

Additional preview pages of the MP13N50 datasheet.

High Voltage : BVDSS=500V(Min. ).
Low Crss : Crss=21pF(Typ. ).
Low gate charge : Qg=43nC(Typ. ).
Low RDS(on) : RDS(on)=0.46Ω(Max. ) MP13N50 Power MOSFET PIN Connection D G GDS S TO-220C-3L Ordering Information Type NO. Outline Dimensions Marking 10.01~10.11 Φ3.6~3.7 Package Code TO-220C-3L unit : mm 1.28~1.32 15.58~15.82 12.85~12.95 9.12~9.27 28.6~28.95 13.03~13.13 3.14 Typ. 4.42~4.57 1.22~1.32 0.75~0.85 2.49~2.59 2.49~2.59 123 2.87 Max. 0.48~0.52 PIN Connection.
