SC8802 - Bi-directional Buck-Boost Charger

Description

SC8802 is a synchronous 4-switch buck-boost charger controller.

It is able to effectively manage charging no matter input/output voltage is higher, lower or equal to battery voltage.

Features

  • Buck-Boost battery charging management supports 1 to 6 battery in series, including trickle charging, CC charging, CV charging and charging termination function.
  • Reverse buck-boost operation output (discharging mode).
  • Wide input voltage range: 2.7 V to 30 V.
  • Wide reverse operation output range : 2V to 30V.
  • Dynamic adjustable output voltage in discharging mode.
  • Dynamic adjustable input and output current limit.
  • High efficient buck-boost operation.
  • Integrat.

📥 Download Datasheet

Datasheet preview – SC8802

Datasheet Details

Part number SC8802
Manufacturer SOUTHCHIP
File Size 934.94 KB
Description Bi-directional Buck-Boost Charger
Datasheet download datasheet SC8802 Datasheet
Additional preview pages of the SC8802 datasheet.

📁 Similar Datasheet

  • SC8800 - Stepping Motor Controller (Oriental Motor)
  • SC8800E - Stepping Motor Controller (Oriental Motor)
  • SC8803 - 10/15 CH PLL FOR CORDLESS PHONE (SL)
  • SC8803S - 10/15 CH PLL FOR CORDLESS PHONE (Silan Microelectronics)
  • SC8863 - 150mA ULTRA LOW DROPOUT/ LOW NOISE REGULATOR (Semtech Corporation)
  • SC8 - SILICON CONTROLLED RECTIFIERS (TRSYS)
  • SC8-400-80 - SILICON CONTROLLED RECTIFIERS (TRSYS)
  • SC8-600-80 - SILICON CONTROLLED RECTIFIERS (TRSYS)
  • SC8-700-80 - SILICON CONTROLLED RECTIFIERS (TRSYS)
  • SC8-800-80 - SILICON CONTROLLED RECTIFIERS (TRSYS)
Other Datasheets by SOUTHCHIP
  • SC8803 - Bi-directional Buck Charger Controller
  • SC8804 - Bi-directional Boost Charger Controller
  • SC8813 - Bi-directional Buck Charger Controller
  • SC8815 - Bi-Directional Buck-Boost Charger Controller
  • SC8329 - 20A Switching Current Synchronous Boost Converter
  • SC8701 - Synchronous Buck-Boost Controller
  • SC8703 - 4-channel step-up and step-up controller
  • SC8721B - Buck-Boost Converter

Full PDF Text Transcription

Click to expand full text

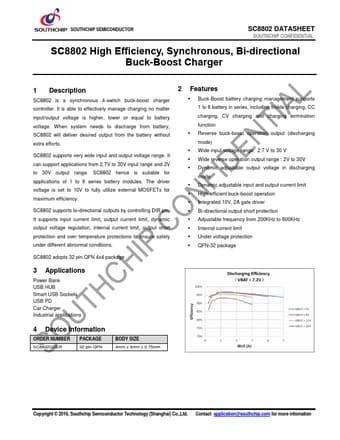

SOUTHCHIP SEMICONDUCTOR SC8802 DATASHEET SOUTHCHIP CONFIDENTIAL SC8802 High Efficiency, Synchronous, Bi-directional Buck-Boost Charger 1 Description SC8802 is a synchronous 4-switch buck-boost charger controller. It is able to effectively manage charging no matter input/output voltage is higher, lower or equal to battery voltage. When system needs to discharge from battery, SC8802 will deliver desired output from the battery without extra efforts. SC8802 supports very wide input and output voltage range. It can support applications from 2.7V to 30V input range and 2V to 30V output range. SC8802 hence is suitable for applications of 1 to 6 series battery modules. The driver voltage is set to 10V to fully utilize external MOSFETs for maximum efficiency.
