SY42STH47-1504A - HIGH TORQUE HYBRID STEP PING MOTOR

Description

BY SY42STH47-1504A DATE CHANGZHOU SONGYANG MACHINERY & ELECTRONICS NEW TECHNIC INSTITUTE TECHNICAL CONDITIONS 060

📥 Download Datasheet

Datasheet Details

Part number SY42STH47-1504A
Manufacturer SONGYANG
File Size 29.88 KB
Description HIGH TORQUE HYBRID STEP PING MOTOR
Datasheet download datasheet SY42STH47-1504A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SY4-1A476M-RC Tantalum Chip Capacitors Elna
SY4-xxxxxx-xx Tantalum Chip Capacitors Elna
SY403DA AMBER GAASP LEDS NEC
SY403TA AMBER GAASP LEDS NEC
SY405D Amber GaAsP LEDs NEC

Other Datasheets by SONGYANG

Part Number Description
SY42STH38-1684A HIGH TORQUE HYBRID STEP PING MOTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

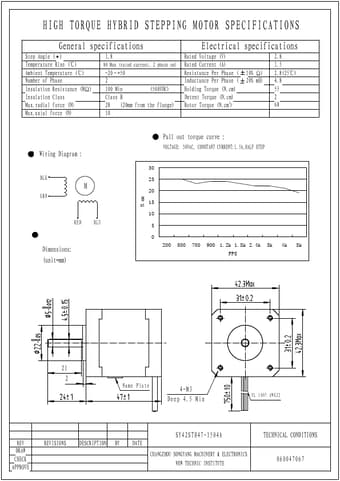

HIGH TORQUE HYBRID STEPPING MOTOR SPECIFICATIONS General specifications Step Angle ( °) Temperature Rise (℃) Ambient Temperature (℃) Number of Phase Insulation Resistance (MΩ) Insulation Class Max.radial force (N) Max.axial force (N) 1.8 80 Max (rated current、2 phase on) -20～+50 2 100 Min (500VDC) Class B 28 (20mm from the flange) 10 Electrical specifications Rated Voltage (V) Rated Current (A) Resistance Per Phase ( ±10% Ω) Inductance Per Phase ( ±20% mH) Holding Torque (N.cm) Detent Torque (N.cm) Rotor Torque (N.cm2) 2.8 1.5 2.8(25℃) 4.8 55 2 68 Wiring Diagram : BLK M GRN RED BLU Dimensions: (unit=mm) N.cm Pull out torque curve : VOLTAGE: 30VAC, CONSTANT CURRENT:1.5A,HALF STEP 30 25 20 15 10 5 0 200 500 700 900 1.2k 1.8k 2.
