VDR-20D221KJ - METAL OXIDE VARISTOR

Download the VDR-20D221KJ datasheet PDF. This datasheet also covers the VDR-20D180L variant, as both devices belong to the same metal oxide varistor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Wide operating voltage (V1mA) range from 18V to 1800V.
  • Fast responding to transient over-voltage.
  • Large absorbing transient energy capability.
  • Low clamping ratio and no follow-on current.
  • Meets MSL level 1, per J-STD-020.
  • Safety number : CUL- E317616 VDE- 40028836 CQC-12001076476 ISO9001-2018.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VDR-20D180L-SONGLONGLISHANG.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VDR-20D221KJ
Manufacturer SONGLONG LISHANG
File Size 361.33 KB
Description METAL OXIDE VARISTOR
Datasheet download datasheet VDR-20D221KJ Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VDR-20D221KJ Metal Oxide Varistor HUAAN
VDR-20D221KJ2 Metal Oxide Varistor HUAAN
VDR-20D221KJ3 Metal Oxide Varistor HUAAN
VDR-20D221K Metal Oxide Varistor HUAAN
VDR-20D221KEC Metal Oxide Varistor HUAAN

Other Datasheets by SONGLONG LISHANG

Part Number Description
VDR-20D221K METAL OXIDE VARISTOR
VDR-20D220K METAL OXIDE VARISTOR
VDR-20D220KJ METAL OXIDE VARISTOR
VDR-20D201K METAL OXIDE VARISTOR
VDR-20D201KJ METAL OXIDE VARISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

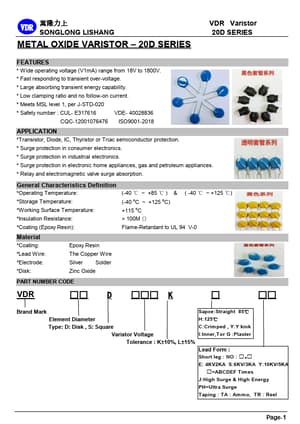

SONGLONG LISHANG METAL OXIDE VARISTOR – 20D SERIES VDR Varistor 20D SERIES FEATURES * Wide operating voltage (V1mA) range from 18V to 1800V. * Fast responding to transient over-voltage. * Large absorbing transient energy capability. * Low clamping ratio and no follow-on current. * Meets MSL level 1, per J-STD-020 * Safety number : CUL- E317616 VDE- 40028836 CQC-12001076476 ISO9001-2018 APPLICATION *Transistor, Diode, IC, Thyristor or Triac semiconductor protection. * Surge protection in consumer electronics. * Surge protection in industrial electronics. * Surge protection in electronic home appliances, gas and petroleum appliances. * Relay and electromagnetic valve surge absorption.
