SE05N6C01GZ - Transient Voltage Suppressors

Datasheet Summary

Features

  • Protects one data or I/O line.
  • Low capacitance.
  • Low clamping voltage.
  • IEC 61000-4-2, level 4.
  • IEC 61000-4-2 ( ESD ), > ±15KV ( air ), > ±8KV ( contact ) Low Capacitance DFN1006.

📥 Download Datasheet

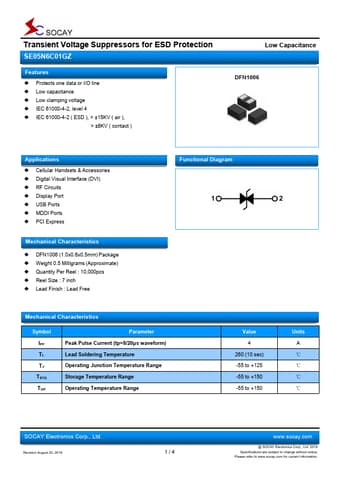

Datasheet preview – SE05N6C01GZ

Datasheet Details

Part number SE05N6C01GZ
Manufacturer SOCAY
File Size 1.15 MB
Description Transient Voltage Suppressors
Datasheet download datasheet SE05N6C01GZ Datasheet
Additional preview pages of the SE05N6C01GZ datasheet.

📁 Similar Datasheet

  • SE050 - Plug & Trust Secure Element (NXP)
  • SE005N - Error Amplifier (Sanken Electric)
  • SE012N - Error Amplifier (Sanken Electric)
  • SE015N - Error Amplifier (Sanken)
  • SE024N - Error Amplifier (Sanken)
  • SE034N - Error Amplifier (Sanken)
  • SE040N - Error Amplifier (Sanken)
  • SE06F10U5.0MA - Electrostatic Discharge Protection Device (Semiware)
  • SE070N - Error Amplifier (Sanken Electric)
  • SE07PB - ESD Capability Rectifiers (Vishay Siliconix)
Other Datasheets by SOCAY

Full PDF Text Transcription

Click to expand full text
Transient Voltage Suppressors for ESD Protection SE05N6C01GZ Features  Protects one data or I/O line  Low capacitance  Low clamping voltage  IEC 61000-4-2, level 4  IEC 61000-4-2 ( ESD ), > ±15KV ( air ), > ±8KV ( contact ) Low Capacitance DFN1006 Applications  Cellular Handsets & Accessories  Digital Visual Interface (DVI)  RF Circuits  Display Port  USB Ports  MDDI Ports  PCI Express Mechanical Characteristics  DFN1006 (1.0x0.6x0.5mm) Package  Weight 0.
