PE12VN50N-06 - Surface Mount Polymeric ESD Suppressor

Description

PE12VN50N-06 polymeric ESD suppressor help protect sensitive electronic equipment against electrostatic discharge (ESD) without distorting data signals.

Features

  • Ultra low capacitance:5pF(typ. ).
  • Fast response time(.

📥 Download Datasheet

Datasheet Details

Part number PE12VN50N-06
Manufacturer SOCAY
File Size 1.12 MB
Description Surface Mount Polymeric ESD Suppressor
Datasheet download datasheet PE12VN50N-06 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PE12016G (PE12016G / PE12024G) Incremental Encoder Productivity Engineering
PE12016G (PE12016G / PE12024G) Incremental Encoder Productivity Engineering
PE1206 CURRENT SENSOR YAGEO
PE12316 Triple Incremental Encoder Adronic Components
PE125B-10F CERMAX FOCUSED XENON ARC LAMPS PerkinElmer Optoelectronics

Other Datasheets by SOCAY

Part Number Description
PE12VP05R-16 Surface Mount Polymeric ESD Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

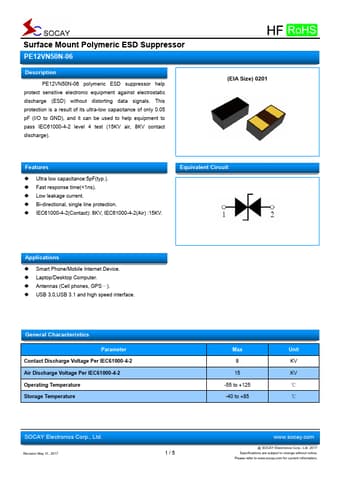

Surface Mount Polymeric ESD Suppressor PE12VN50N-06 Description PE12VN50N-06 polymeric ESD suppressor help protect sensitive electronic equipment against electrostatic discharge (ESD) without distorting data signals. This protection is a result of its ultra-low capacitance of only 0.05 pF (I/O to GND), and it can be used to help equipment to pass IEC61000-4-2 level 4 test (15KV air, 8KV contact discharge). (EIA Size) 0201 Features  Ultra low capacitance:5pF(typ.).  Fast response time(<1ns).  Low leakage current.  Bi-directional, single line protection.  IEC61000-4-2(Contact): 8KV, IEC61000-4-2(Air) :15KV. Equivalent Circuit Applications  Smart Phone/Mobile Internet Device.  Laptop/Desktop Computer.  Antennas (Cell phones, GPS…).  USB 3.0,USB 3.1 and high speed interface.
