P6SMB600A, P6SMB6.8A Surface Mount Transient Voltage Suppressors

SOCAY

Description

Surface Mount Transient Voltage Suppressors (TVS) P6SMB Series 6.8 To 600 V 600W .
The P6SMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient v.

📥 Download Datasheet

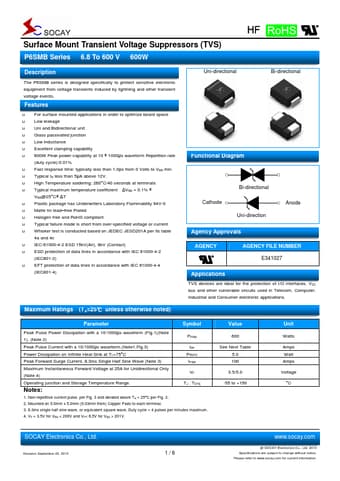

P6SMB600A Datasheet Preview — This datasheet PDF includes multiple part numbers: P6SMB600A, P6SMB6.8A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: P6SMB600A, P6SMB6.8A
Manufacturer: SOCAY
File Size: 566.10 KB
Datasheet: P6SMB6.8A-SOCAY.pdf
Description: Surface Mount Transient Voltage Suppressors
Note: This datasheet PDF includes multiple part numbers: P6SMB600A, P6SMB6.8A.
Please refer to the document for exact specifications by model.

Applications

* in order to optimize board space u Low leakage u Uni and Bidirectional unit u Glass passivated junction u Low inductance u Excellent clamping capability u 600W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01% u Fast response time: typically less than 1.0ps from 0 Volt
