5.0SMDJ58C - Surface Mount Transient Voltage Suppressors

Download the 5.0SMDJ58C datasheet PDF (5.0SMDJ11 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount transient voltage suppressors.

Description

The 5.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

  • u For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5.0SMDJ11-SOCAY.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 5.0SMDJ58C
Manufacturer SOCAY
File Size 437.92 KB
Description Surface Mount Transient Voltage Suppressors
Datasheet download datasheet 5.0SMDJ58C Datasheet

📁 Similar Datasheet

  • 5.0SMDJ58C - SURFACE MOUNT TVS DIODE (RFE)
  • 5.0SMDJ58C - SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE (SunMate)
  • 5.0SMDJ58CA - Transient Voltage Suppression Diodes (Littelfuse)
  • 5.0SMDJ58CA - Transient Voltage Suppressors (Brightking)
  • 5.0SMDJ58CA - SURFACE MOUNT TVS DIODE (RFE)
  • 5.0SMDJ58CA - Transient Voltage Suppressor Diode (BOURNS)
  • 5.0SMDJ58CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE (SunMate)
  • 5.0SMDJ58CA - 5000W Transient Voltage Suppressor (WeEn)
  • 5.0SMDJ58CA-Q - Transient Voltage Suppressor Diode (BOURNS)
  • 5.0SMDJ58CAS - TVS Diodes (Littelfuse)
Other Datasheets by SOCAY
  • 5.0SMDJ58CA - Surface Mount Transient Voltage Suppressors
  • 5.0SMDJ58 - Surface Mount Transient Voltage Suppressors
  • 5.0SMDJ58A - Surface Mount Transient Voltage Suppressors
  • 5.0SMDJ51 - Surface Mount Transient Voltage Suppressors
  • 5.0SMDJ51A - Surface Mount Transient Voltage Suppressors
  • 5.0SMDJ51C - Surface Mount Transient Voltage Suppressors
  • 5.0SMDJ51CA - Surface Mount Transient Voltage Suppressors
  • 5.0SMDJ54 - Surface Mount Transient Voltage Suppressors

Full PDF Text Transcription

Click to expand full text

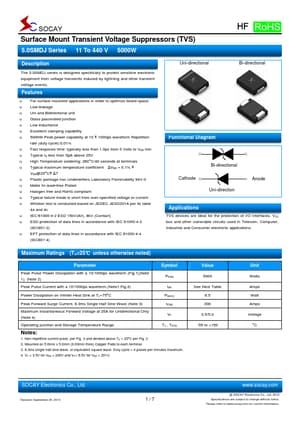

Surface Mount Transient Voltage Suppressors (TVS) 5.0SMDJ Series 11 To 440 V 5000W Description The 5.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Features u For surface mounted applications in order to optimize board space u Low leakage u Uni and Bidirectional unit u Glass passivated junction u Low inductance u Excellent clamping capability u 5000W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01% u Fast response time: typically less than 1.0ps from 0 Volts to VBR min u Typical IR less than 5μA above 25V. u High Temperature soldering: 260°C/40 seconds at terminals u Typical maximum temperature coefficient ΔVBR = 0.
