COM8018, COM1863 - Universal Asynchronous Receiver/Transmitter

SMSC

The COM8018 by SMSC is a Universal Asynchronous Receiver/Transmitter. Below is the official datasheet preview.

📥 Download Datasheet

COM8018 Universal Asynchronous Receiver/Transmitter by SMSC - Datasheet Preview — Official preview page of the **COM8018** Universal Asynchronous Receiver/Transmitter datasheet (SMSC).

Datasheet Details

Part number	COM8018, COM1863
Manufacturer	SMSC
File Size	348.30 KB
Description	Universal Asynchronous Receiver/Transmitter
Datasheet	COM1863-StandardMicrosystems.pdf
Note	This datasheet PDF includes multiple part numbers: COM8018, COM1863. Please refer to the document for exact specifications by model.

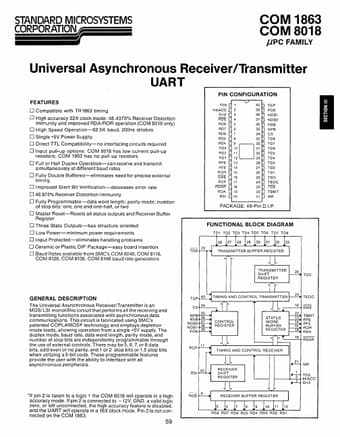

Additional preview pages of the COM8018 datasheet.

COM8018 Product details

Description

The Universal Asynchronous Receiver/Transmitter is an MaS/LSI monol ithic circuit that performs all the receiving and transmitting functions associated with asynchronous data communications.

Features

o Compatible with TR1863 timing o High accuracy 32X clock mode: 48.4375% Receiver Distortion Immunity and improved RDA/ROR operation (COM 8018 only) o High Speed Operation-62.5K baud, 200ns strobes o Single +5V Power Supply o Direct TTL Compatibility-no interfacing circuits required o Input pull-up options: COM 8018 has low current pull-up resistors; COM 1863 has no pull up resistors o Full or Half Duplex Operation-can receive and transmit simultaneously at different baud rates o Fully Double Bu.
