LAN91C96I Non-PCI Single-Chip Full Duplex Ethernet Controller

LAN91C96I Description

LAN91C96I Non-PCI Single-Chip Full Duplex Ethernet Controller Datasheet Product .
of Pin Functions on Page 14 for 5V tolerant pins SMSC DS. LAN91C96I Page 1 Rev.

LAN91C96I Features

* Non-PCI Single-Chip Ethernet Controller Fully Supports Full Duplex Switched Ethernet Supports Enhanced Transmit Queue Management 6K Bytes of On-Chip RAM Supports IEEE 802.3 (ANSI 8802-3)

LAN91C96I Applications

* Network Interface Integrated AUI Interface 10 Mb/s Manchester Encoding/Decoding and Clock Recovery Automatic Retransmission, Bad Packet Rejection, and Transmit Padding External and Internal Loopback Modes Four Direct Driven LEDs for Status/ Diagnostics Software Drivers Bus Interface

📥 Download Datasheet

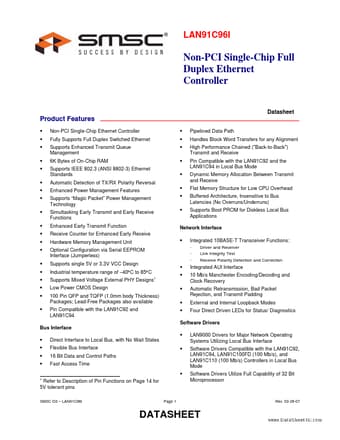

Preview of LAN91C96I PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LAN91C96I
Manufacturer
SMSC Corporation
File Size
538.55 KB
Datasheet
LAN91C96I_SMSCCorporation.pdf
Description
Non-PCI Single-Chip Full Duplex Ethernet Controller
