SS515A, SS52A Surface Mount Schottky Barrier Rectifiers

SS515A Description

20 *- 200 V 5 .0A SS52A thru SS520A Surface Mount Schottky Barrier Rectifiers Reverse Voltage 20 to 200 V Forward Current 5.0 A .

SS515A Features

* 。High Current Capability
* 。Low Forward Voltage Drop
* 260℃/10 High temperature soldering guaranteed: 260℃/10seconds at terminals
* RoHS 。 Lead and body according with RoHS standard Mechanical Data
* : Case: Molded plastic body
* : Terminals: Solder plated
* : Pol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS515A, SS52A. Please refer to the document for exact specifications by model.

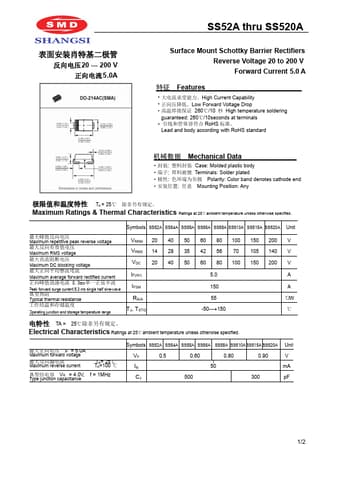

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS515A, SS52A
Manufacturer
SMD
File Size
1.19 MB
Datasheet
SS52A-SMD.pdf
Description
Surface Mount Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SS515A, SS52A.
Please refer to the document for exact specifications by model.
