MBR1580 - Plastic Schottky Barrier Rectifiers

Product Overview

Part number	MBR1580
Manufacturer	SMD
File Size	356.79 KB
Description	Plastic Schottky Barrier Rectifiers
Datasheet	MBR1580 Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR1580, MBR1530. Please refer to the document for exact specifications by model.

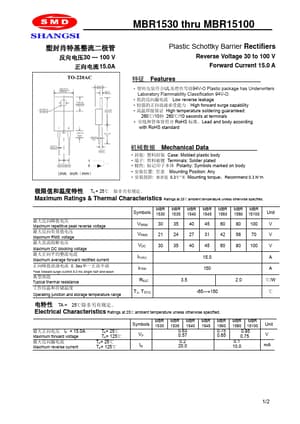

Additional preview pages of the MBR1580 datasheet.

UL94V-O Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
Low reverse leakage.
High forward surge capability.
High temperature soldering guaranteed: 260℃/10 260℃/10 seconds at terminals.
RoHS 。Lead and body according with RoHS standard Mechanical Data.
: Case: Molded plastic body.
: Terminals: Solder plated.
: Polarity: Symbols marked on body.
: Mounting Position: Any.
: 0.3.
Mounting torque：Recommend.
