GL41D, GL41A Surface Mount Rectifiers

Description

GL41A thru GL41Y 50 *- 1600 V 1A Surface Mount Rectifiers Reverse Voltage 50 to 1600 V Forward Current 1 A .

📥 Download Datasheet

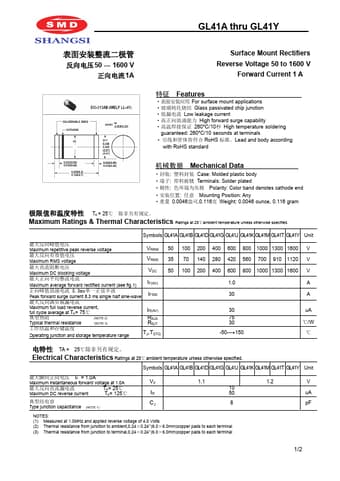

GL41D Datasheet Preview — This datasheet PDF includes multiple part numbers: GL41D, GL41A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GL41D, GL41A
Manufacturer: SMD
File Size: 1.54 MB
Datasheet: GL41A-SMD.pdf
Description: Surface Mount Rectifiers
Note: This datasheet PDF includes multiple part numbers: GL41D, GL41A.
Please refer to the document for exact specifications by model.

Applications

* Glass passivated chip junction
* Low leakage current
* High forward surge capability
* 260°C/10 High temperature soldering guaranteed: 260°C/10 seconds at terminals
* RoHS 。Lead and body according with RoHS standard Mechanical Data
* : Case: Molded plastic body
