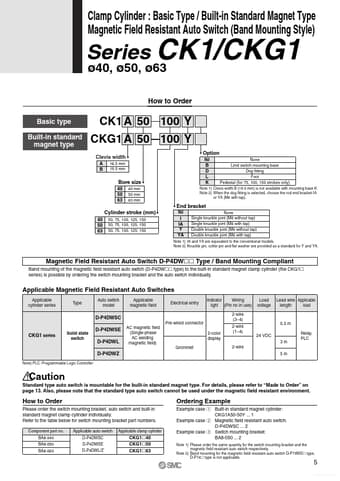

Clamp Cylinder : Basic Type / Built-in Standard Magnet Type Magnetic Field Resistant Auto Switch (Band Mounting Style) Series CK1/CKG1 ø40, ø50, ø63 How to Order Basic type Built-in standard magnet type CK1 A 50 100 Y CKG1 A 50 100 Y Clevis width A B 16.5 mm 19.5 mm Option Nil Bore size 40 50 63 40 mm 50 mm 63 mm Nil B D L K None Limit switch mounting base Dog fitting Foot Pedestal (for 75, 100, 150 strokes only) Note 1) Clevis width B (19.5 mm) is not available with mounting base K.

Note

CK-D04 Features

* erial: Rolled steel Option symbol Applicable clamp cylinder CK

* 1A series CK

* 1B series 60 CK-L04 L Note) A spring washer for the mounting bolt (hexagon socket head cap screw) will be attached as a standard for the foot bracket. Pedestal KZZ
