ST3300A SCHOTTKY RECTIFIER

ST3300A Description

Technical Data Data Sheet N2397, REV.- ST3300A SCHOTTKY RECTIFIER ST3300A SMA .

ST3300A Features

* Small foot print, surface mountable
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Trench MOS

ST3300A Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings(limiting values, TC =25°C unless otherwise specified) Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward

📥 Download Datasheet

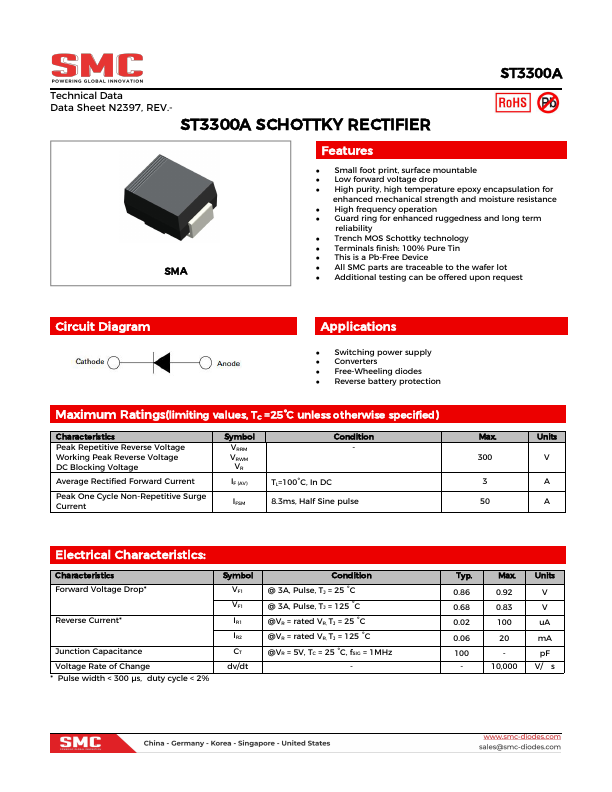

Preview of ST3300A PDF

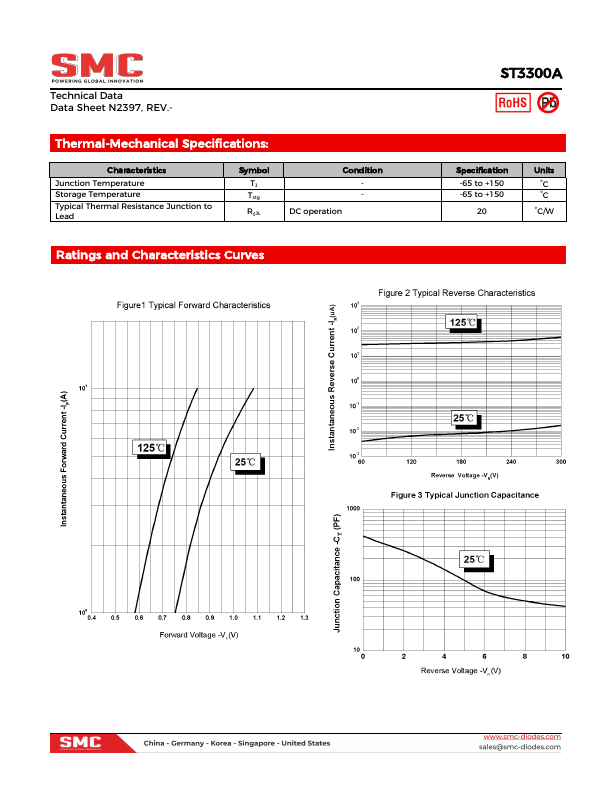

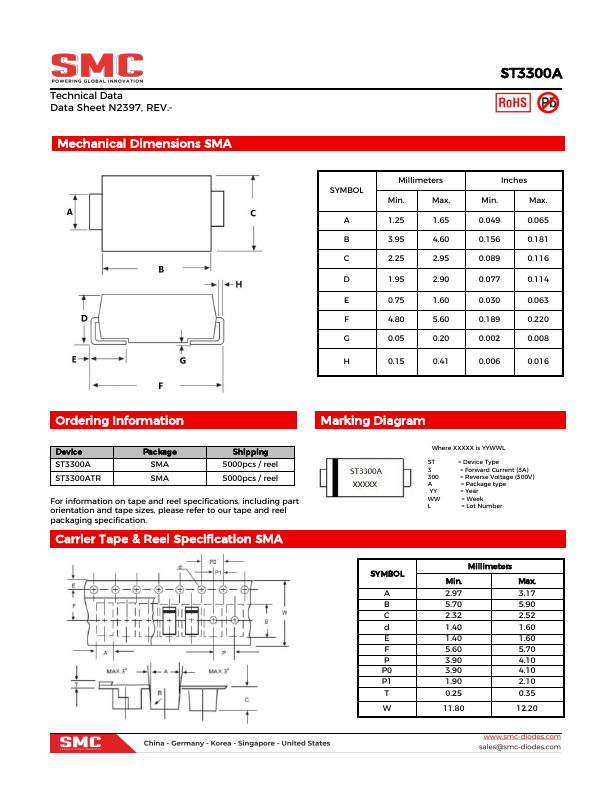

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST3300A
Manufacturer
SMC Diode
File Size
562.60 KB
Datasheet
ST3300A-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
