SK156 - SCHOTTKY RECTIFIER

SMC Diode

The SK156 by SMC Diode is a SCHOTTKY RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

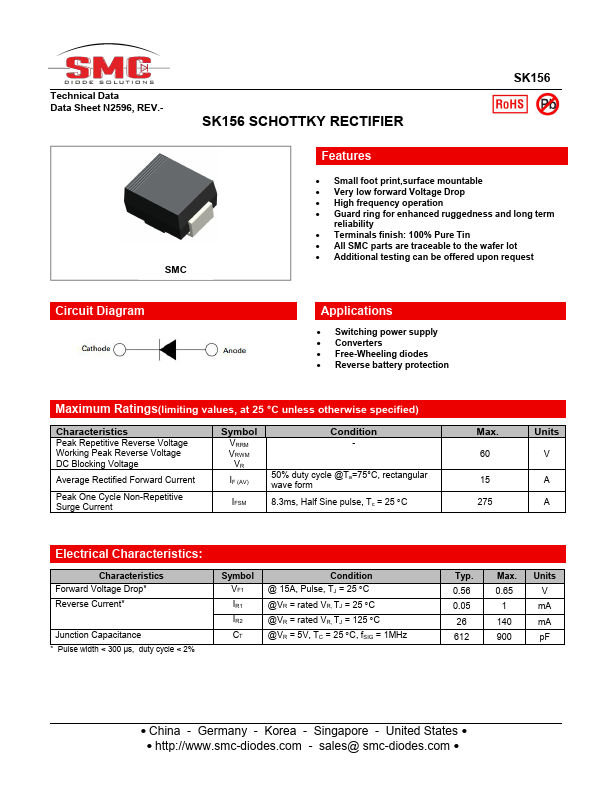

SK156 SCHOTTKY RECTIFIER by SMC Diode - Datasheet Preview — Official preview page of the SK156 SCHOTTKY RECTIFIER datasheet (SMC Diode).

Datasheet Details

Part number	SK156
Manufacturer	SMC Diode
File Size	307.51 KB
Description	SCHOTTKY RECTIFIER
Datasheet	SK156-SMCDiode.pdf

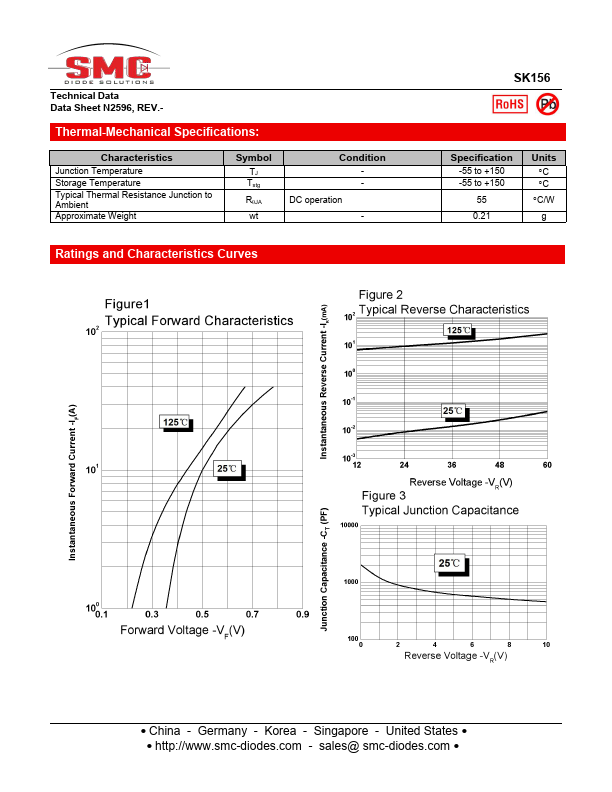

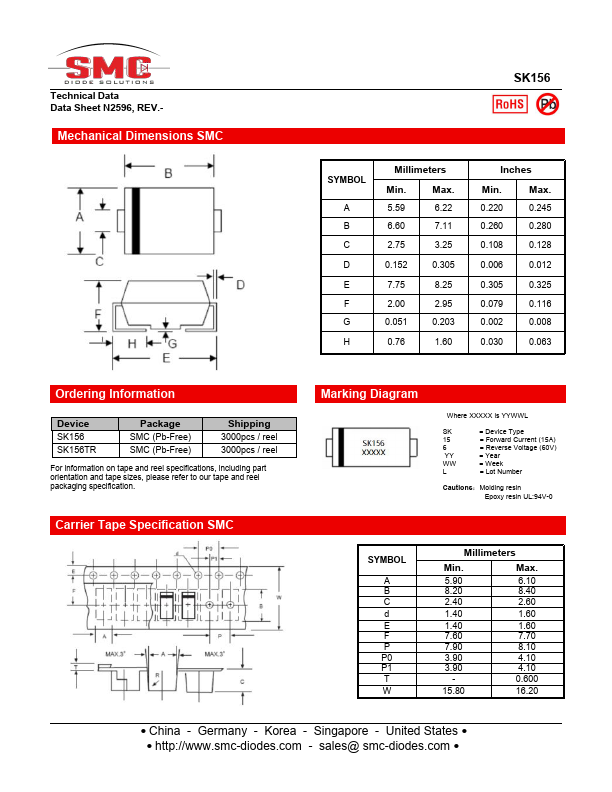

Additional preview pages of the SK156 datasheet.

SK156 Product details

Features

Small foot print,surface mountable.
Very low forward Voltage Drop.
High frequency operation.
Guard ring for enhanced ruggedness and long term reliability.
Terminals finish: 100% Pure Tin.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram.
