S16C03-8 - TVS ARRAY

S16C03-8 Description

Technical Data Data Sheet N0289, Rev.B S16C03-8 THRU S16C24-8 TVS ARRAY SERIES S16C03-8 THRU S16C24-8 SO-16 .
The S16CXX-8 series of TVS array have been designed to provide bidirectional protection for sensitive electronics from damage due to voltage transient.

S16C03-8 Features

* Protects 3.3, 5, 12, 15, 24 V Components
* Bidirectional
* Provides Electrically Isolated Protection
* 300 W @ 8/20 us
* Protects 8 Lines
* SO-16 Packaging
* “-A” is an AEC-Q101 qualified device
* This is a Pb - Free Device
* All SMC parts are traceabl

📥 Download Datasheet

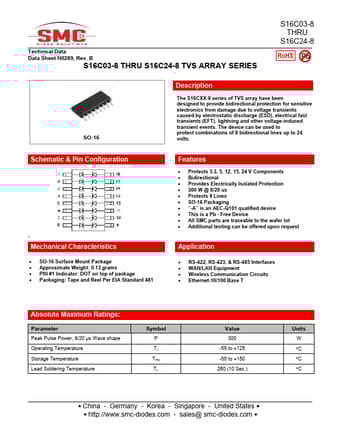

Preview of S16C03-8 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S16C03-8
Manufacturer
SMC Diode
File Size
320.83 KB
Datasheet
S16C03-8-SMCDiode.pdf
Description
TVS ARRAY
