RS1G, RS1A SUPER FAST RECTIFIER

SMC Diode

Description

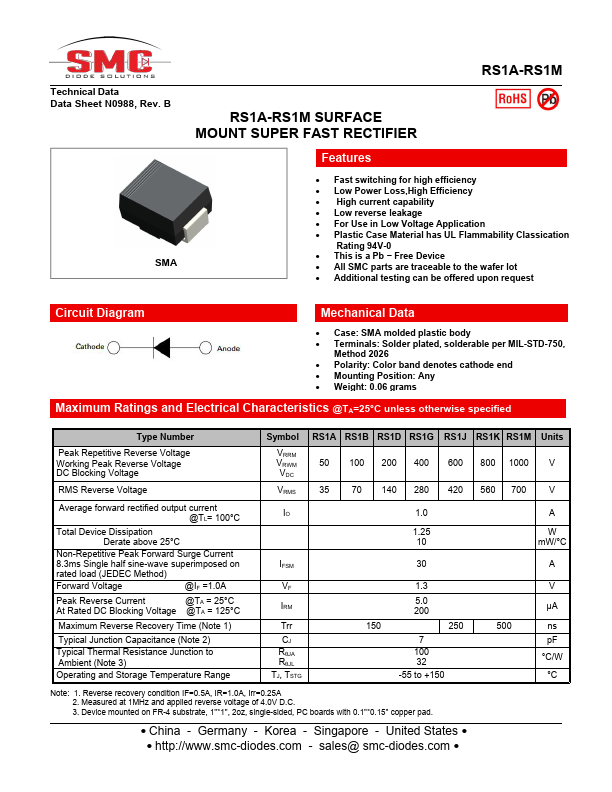

Technical Data Data Sheet N0988, Rev.B SMA RS1A-RS1M RS1A-RS1M SURFACE MOUNT SUPER FAST RECTIFIER .

📥 Download Datasheet

RS1G Datasheet Preview — This datasheet PDF includes multiple part numbers: RS1G, RS1A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RS1G, RS1A
Manufacturer: SMC Diode
File Size: 297.46 KB
Datasheet: RS1A-SMCDiode.pdf
Description: SUPER FAST RECTIFIER
Note: This datasheet PDF includes multiple part numbers: RS1G, RS1A.
Please refer to the document for exact specifications by model.

Features

* Fast switching for high efficiency
* Low Power Loss,High Efficiency
* High current capability
* Low reverse leakage

Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) und
