MBRD8100 - SCHOTTKY RECTIFIER

Product Overview

SMC Diode

📥 Download Datasheet

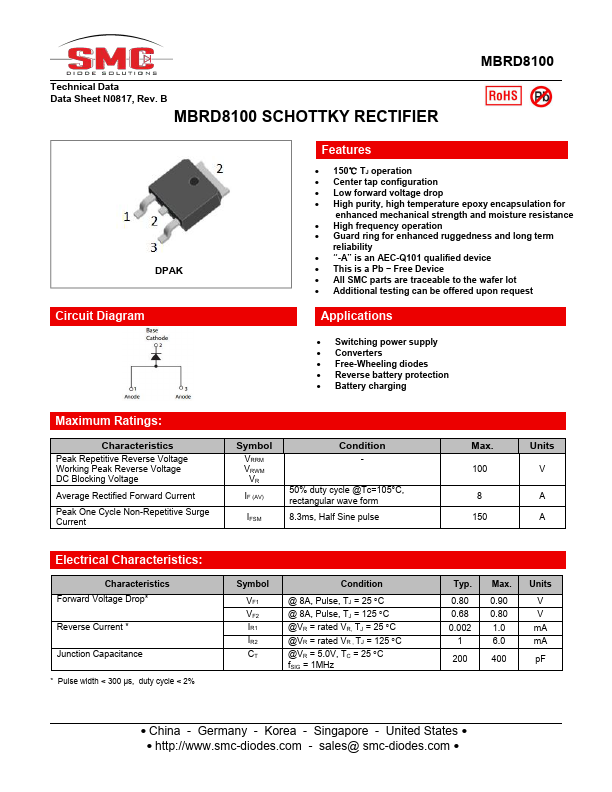

MBRD8100 SCHOTTKY RECTIFIER by SMC Diode - Datasheet Preview — Datasheet preview – MBRD8100

Datasheet Details

Part number	MBRD8100
Manufacturer	SMC Diode
File Size	368.68 KB
Description	SCHOTTKY RECTIFIER
Datasheet	MBRD8100 Datasheet

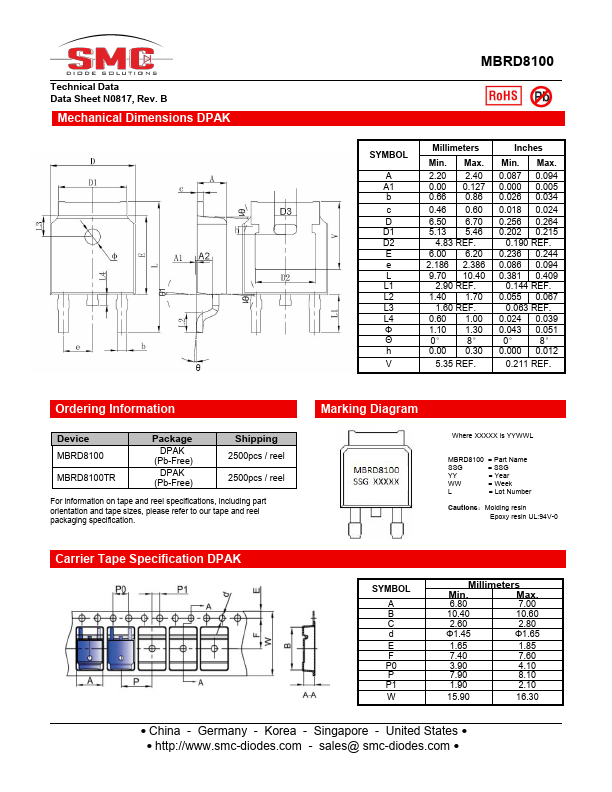

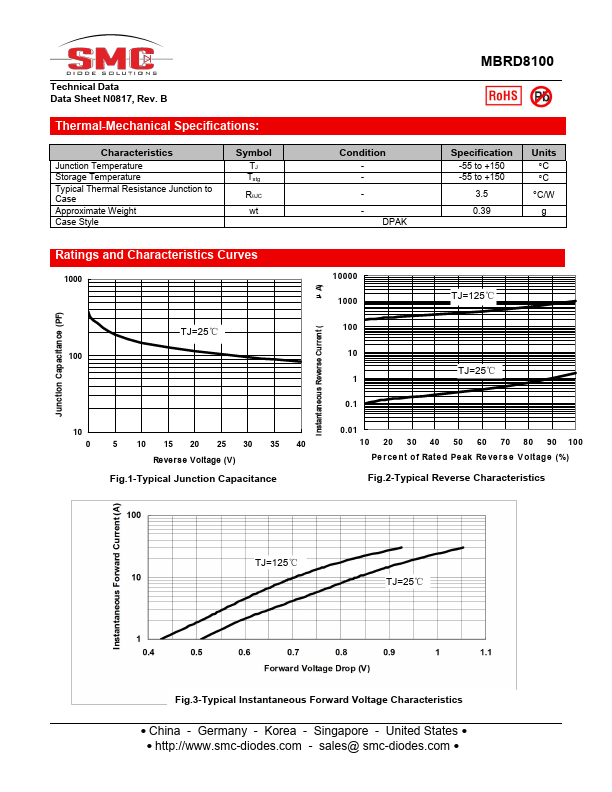

Additional preview pages of the MBRD8100 datasheet.

Product details

Features

150℃ TJ operation.
Center tap configuration.
Low forward voltage drop.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
High frequency operation.
Guard ring for enhanced ruggedness and long term reliability.
“-A” is an AEC-Q101 qualified device.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request.
