MBR5150 - SCHOTTKY RECTIFIER

MBR5150 Description

Technical Data Data Sheet N1779, Rev.A MBR5150 SCHOTTKY RECTIFIER MBR5150 TO-220AC .

MBR5150 Features

* 150 C TJ operation
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced
* mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* This is a Pb

MBR5150 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current

📥 Download Datasheet

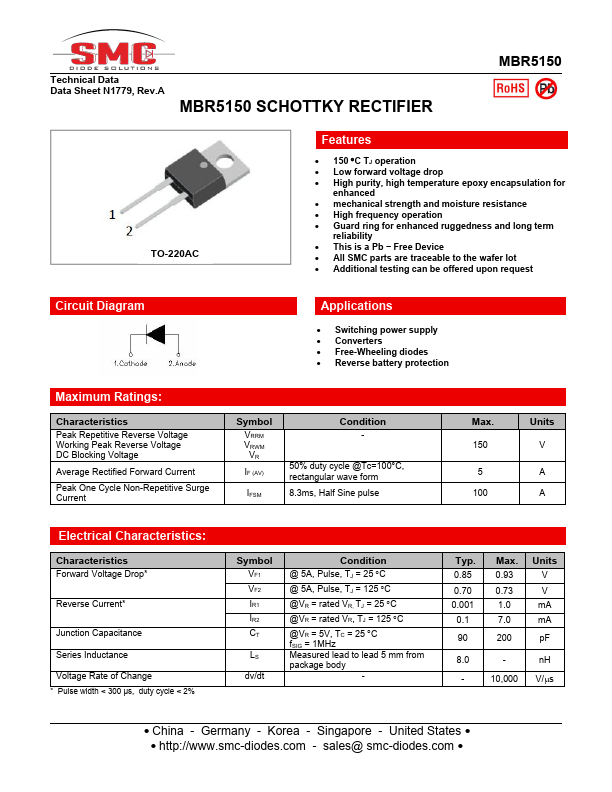

Preview of MBR5150 PDF

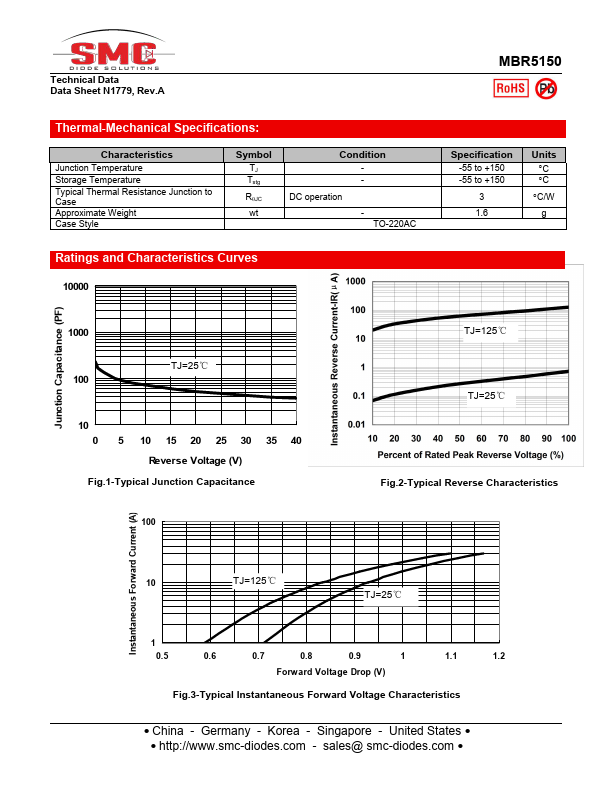

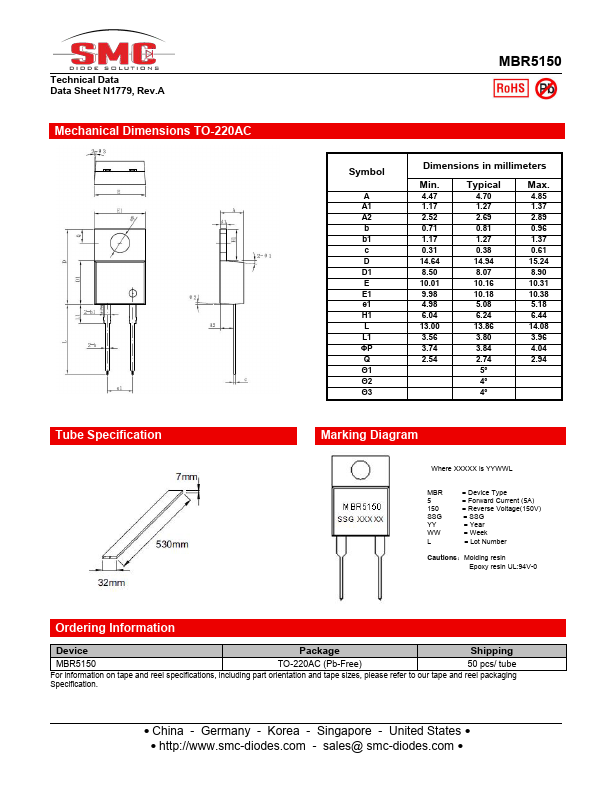

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR5150
Manufacturer
SMC Diode
File Size
476.48 KB
Datasheet
MBR5150-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
